1N5383B Diode – 5W, 150V, Rectifier, Zener ( Datasheet PDF )

Part Number : 1N5383B

Function : 5 Watt, 150V, Diode, Rectifier ( Zener Voltage Regulator )

Package : Axial Lead Type

Manufacturers : ON Semiconductor

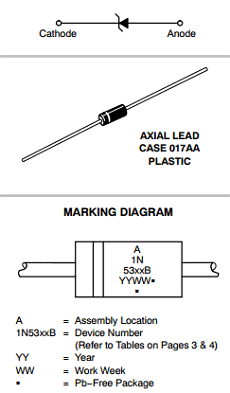

Image and Pinouts :

1N5383B datasheet



Description :

The is 5W, 150V, Rectifier.

This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon−oxide passivated junctions.

All this in an axial lead, transfer−molded plastic package that offers protection in all common environmental conditions.

Features :

• Zener Voltage Range : 150 V

• ESD Rating of Class 3 (>16 kV) per Human Body Model

• Surge Rating of up to 180 W @ 8.3 ms

• Maximum Limits Guaranteed on up to Six Electrical Parameters



1N5383B Datasheet PDF Download

1N5383B pdf

Other data sheets within the file : 1N5333B, 1N5334B, 1N5335B, 1N5336B, 1N5337B
