25Q64 Datasheet – 64M-Bit Serial Flash Memory – Winbond

Part Number: 25Q64, W25Q64FW

Function: 1.8V 64M-BIT SERIAL FLASH MEMORY WITH DUAL/QUAD SPI & QPI

Package : 8-pin SOIC/VSOP 208-mil, 8-pad WSON 6×5-mm / 8×6-mm, 16-ball WLBGA

Manufacturer: https://www.winbond.com/

Image:

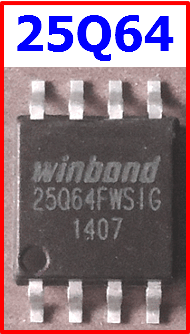

25Q64 Serial Flash Memory

Description

The 25Q64 (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 1.65V to 1.95V power supply with current consumption as low as 4mA active and 1µA for power-down. All devices are offered in space saving packages.

The 25Q64 array is organized into 32,768 programmable pages of 256-bytes each. Up to 256 bytes  can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase) or the entire chip (chip erase). The W25Q64FW has 4,096 erasable sectors and 256 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage.



Pinouts:

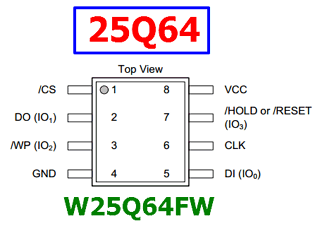

25Q64 datasheet pinout

Official Homepage: http://www.winbond.com/hq/product/code-storage-flash-memory/



25Q64 Datasheet
