2SC2783 Datasheet – NPN Transistor, 36V, UHF, 8 A – Toshiba

Part Number : 2SC2783

Function : NPN Transistor (UHF BAND POWER AMPLIFIER APPLICATIONS)

Package : SOT-119, SOT-160, 2-13C1A Type

Manufactures : Toshiba Semiconductor


2SC2783 Image


Features

1. Output Power : Po = 40W ( Min.) ( f=470Mhz, Vcc=12.5V, Pi=13W )

Pinout
2SC2783 Pinout

Absolute maximum ratings ( Tc=25°C )

1. Collector to Base Voltage : Vcbo = 36 V
2. Collector to Emitter Voltage : Vceo = 16 V
3. Emitter to Base Voltage : Vebo = 4 V
4. Collector Current : Ic = 8A
5. Total Dissipation : Pc = 150 W
6. Junction Temperature : Tj = 175°C
7. Storage Temperatue : Tsg = -65 ~ +175°C

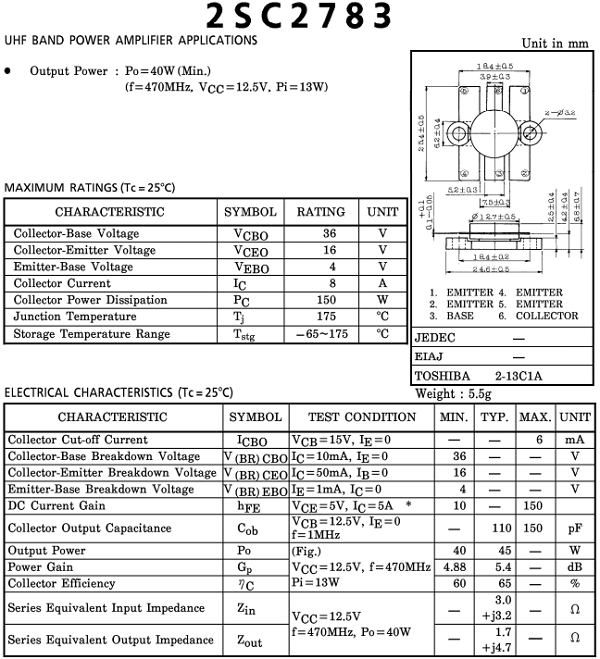

2SC2783 Datasheet

2SC2783 Datasheet
