2SK1492 Datasheet – 250V, 35A, N-Ch, MOSFET ( PDF )

Part Number : 2SK1492

Function : 250V, 35A, SWITCHING N-CHANNEL POWER MOSFET

Package : TO-3P Pin Type

Manufacturers : NEC, Renesas Electronics

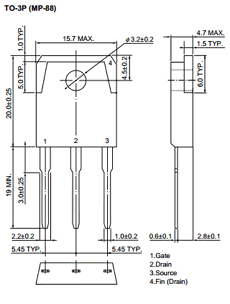

Image and Pinouts :

2SK1492 datasheet



Description :

The 2SK1492 is N-Channel MOS Field Effect Transistor designed for high voltage switching applications.

Features

1. Low on-state resistance RDS(on)= 0.1 Ω MAX. (VGS= 10 V, ID= 18 A)
2. Low input capacitance Ciss= 3000 pF TYP.
3. Built-in G-S gate protection diodes
4. High avalanche capability ratings



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to Source Voltage (VGS = 0 V) : VDSS = 250 V
2. Gate to Source Voltage (VDS = 0 V) : VGSS = ±30 V
3. Drain Current (DC) : ID(DC) = ±35 A
4. Drain Current (pulse) : ID(pulse) = ±140 A
5. Total Power Dissipation (TC = 25°C) : PT = 140 W

Other data sheets within the file : K1492
