2SK1492 Datasheet PDF – N-Channel MOSFET – NEC

Part Number : 2SK1492

Function : N-Channel Power MOSFET

Package : TO-3 Type

Manufacturers : NEC => Renesas Technology


2SK1492 MOSFET Transistor





Description :

The 2SK1492 is N-channel MOS Field Effect Transistor designed for high voltage switching applications.

Features

1. Low On-state Resistance
2. Low Ciss = 3,000 pF Typ.
3. Built-in G-S Gate Protection Diodes
4. High Avalanche Gapability Ratings

Absolute Maximum Ratings

1. Maximum Power Dissipation : 140 W
2. Drain to Source Voltage : 250 V
3. Single Avalanche Current : 52.5 A
4. Single avalance Energy : 2,500 mJ

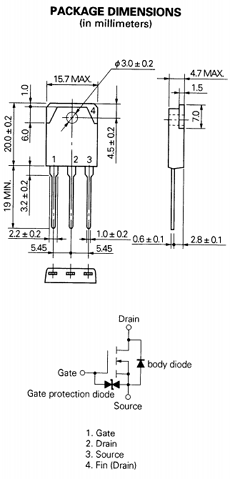

Pinouts :

2SK1492 datasheet

Other data sheets within the file : K1492
