2SK1596 MOSFET – 30V, 40A, Transistor ( Datasheet PDF )

Part Number: 2SK1596

Function: 30V, 40A, N-channel MOSFET

Package: TO-220 Type

Manufacturer: NEC (Renesas Technology)

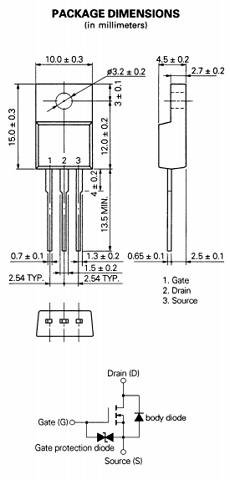

Image and Pinouts:

2SK1596 datasheet



Description

The 2SK1596 is N-channel MOS Field Effect Transistor designed for solenoid, motor and lamp driver.

Features

1. Low On-State Resistance

2. Low Ciss = 3,400 pF Type.

3. Built-in G-S Gate Protection Diode



Absolute Maximum Ratings (Ta = 25°C)

1. Drain to source voltage: VDSS = 30 V

2. Gate to source voltage: VGSS = ± 20 V

3. Drain current: ID = 40 A

4. Total Power Dissipation: Pd = 2 W

5. Channel temperature: Tch = 150 °C

6. Storage temperature: Tstg = -55 to +150 °C





2SK1596 Datasheet PDF Download


2SK1596 pdf

Other data sheets are available within the file: K1596
