2SK94 JFET, Transistor ( Datasheet PDF )

Part Number : 2SK94

Function : -50V, Junction Field Effect Transistor

Package : Mino Mold Type

Manufacturers : NEC (Renesas Technology)

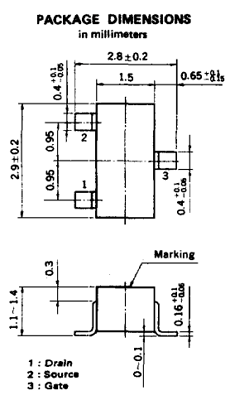

Pinouts :

2SK94 datasheet



Description :

N-channel Silicon Junction Field Effect Transistor Mini Mold.



Absolute maximum ratings ( Ta=25°C )

1. Gate to Drain Voltage : Vgdo = – 50 V

2. Gate to Source Voltage : Vgso = – 50 V

3. Drain to Source Voltage : Vdsx = 50 V

4. Drain Current(DC) = Id = 20 mA

5. Total Power Dissipaton : Pt = 150 mW

6. Junction Temperature : Tj = 125 °C

7. Storage Temperatue : Tsg = -55 ~ +125 °C



Applications :

1. Audio frequency amplifier



2SK94 Datasheet PDF Download


2SK94 pdf

Other data sheets within the file : K94
