30G123 Datasheet PDF – 430V, 200A, IGBT, Transistor

Part Number: 30G123, GT30G123

Function: IGBT, 430V / 200A

Package: TO-220SIS Type

Manufacturer: Toshiba

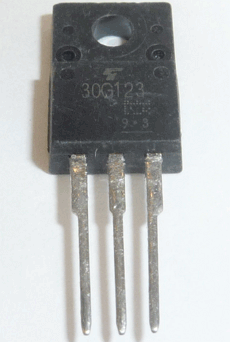

Image :
30G123

Description

The IGBT is insulated-gate bipolar transistor.

IGBTs combine the MOSFET advantage of high input impedance with the bipolar transistor
advantage of high-voltage drive. The conductivity modulation characteristics of a bipolar transistor make it ideal for load control applications that require high breakdown voltage and high current. Toshiba offers a family of fast switching IGBTs, which are low in carrier injection and recombination in carrier.

The Toshiba discrete IGBTs are available in high-voltage and high-current ratings. They are used in inverter and power conversion circuits for such diverse applications as motor drivers, uninterruptible power supply (UPS) systems, IH cookers, plasma display panels (PDPs), strobe flashes and so on.

Features of the Toshiba Discrete IGBTs

(1) IGBTs also featuring fast switching

(2) Low collector-emitter saturation voltage even in the large current area

(3) IGBTs featuring a built-in diode with optimal characteristics tailored to specific applications

(4) High input impedance allows voltage drives

(5) Available in a variety of packages

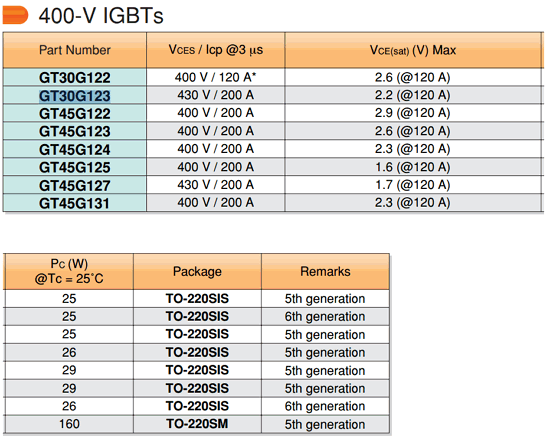

30G123 GT30G123 datasheet

30G123 Datasheet PDF

30G123 pdf

Other data sheets are available within the file: 45G125, 45G127, 45G131, GT30G123
