5252F Datasheet – QX5252, Solar LED Driver Transistor IC

Part Number : QX5252, Marking : 5252F

Function : Solar LED drivers

Package : TO-94, SOT23-5, DIP-8 Pin Type

Manufactures :  QX Micro Devices ( www.qxmd.com.cn )


5252F Solar LED driver IC


Description

QX5252 is a solar LED lighting fixtures for ASIC design. It is driven by a switching circuit, Optical switch circuit, over discharge protection circuit, the internal integration of Short Based diodes and other circuit. Can be only one external inductor Composition of solar lighting devices. 5252F using patented technology, LED Undervoltage shutdown makes no blinking LED lights.

Pinout
5252F pinout



Features

1. Operating voltage: 0.9V ~ 1.5V
2. Output current: 3mA ~ 300mA
3. Patented over-discharge protection: no flash off
4. Integrated light control switch
5. Integrated Schottky Diode
6. Only one inductor external components
7. High efficiency
8. Low quiescent current : 17uA

5252F circuit

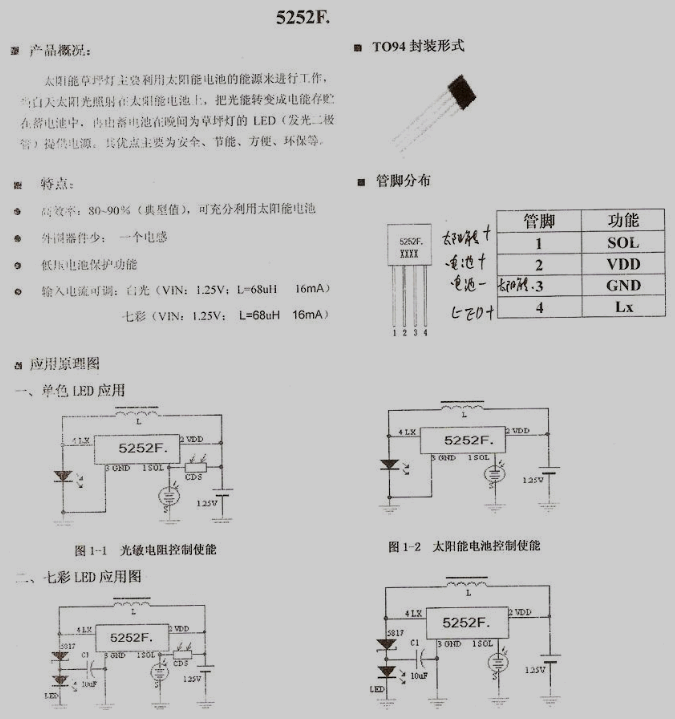

5252F datasheet

Official Hompage : http://www.qxmd.com.cn/?product/QX5252.html

Application

1. Solar lawn
2. Solar landscape



5252F Datasheet PDF Download

5252F pdf
