54F00LMQB Datasheet PDF – Quad 2-Input NAND Gate

Part Number : 54F00LMQB

Function : Quad 2-Input NAND Gate

Package : LCC ( 20-Lead Ceramic Leadless Chip )

Manufacturers : National Semiconductor (Texas Instruments)

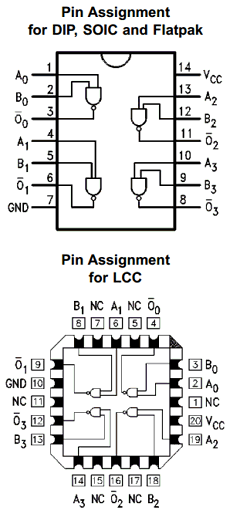

Pinouts :

54F00LMQB datasheet


Description :

This device contains four independent gates, each of which performs the logic NAND function.

Features :

1. Guaranteed 4000V minimum ESD protection

Ordering Information


Acquired by Texas Instruments on September 23rd, 2011.

Other data sheets within the file : 54F00DM, 54F00FM, 54F00LM, 74F00PC, 74F00SC, 74F00SJ
