7408 Datasheet – Quad 2-Input AND Gates – DM7408

This post explains for the TTL IC.

Part Number: 7408, DM7408

Function : Quad 2-Input AND Gates

Package: DIP, SOP 14 Pin Type

Manufacturer: Fairchild

See the preview image and the 7408 Datasheet file for more information.

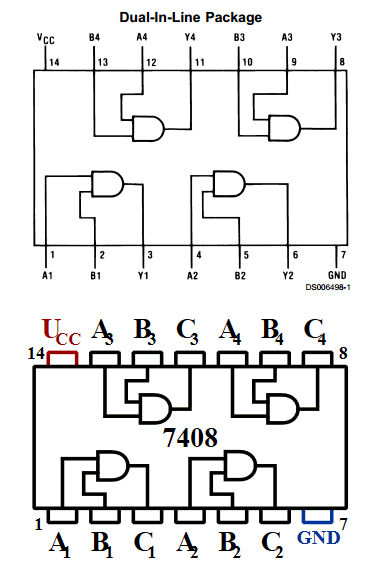

7408 Pinout

7408 Pinout

Description

This device contains four independent gates each of which performs the logic AND function.

Fuction Table ( Y= AB )

A   B    Y
L    L    L
L    H   L
H   L    L
H   H   H

Recommended Operating Conditions

1. VCC : Supply Voltage = 4.75 5 5.25 V
2. VIH : HIGH Level Input Voltage = 2 V
3. VIL : LOW Level Input Voltage = 0.8 V
4. IOH : HIGH Level Output Current = −0.8 mA
5. IOL : LOW Level Output Current = 16 mA
6. TA : Free Air Operating Temperature = 0 70 °C

Absolute Maximum Ratings

7408 Datasheet

7408 Datasheet
