74HC00 Datasheet PDF – Quad 2-input NAND Gate – Philips

Part Number: 74HC00

Function: Quad 2-input NAND Gate

Package: DIP, SSOP 14 Pin

Manufacturer: Philips, NXP Semiconductors.

Images

74hc00-nand-gate

Descripiton

The 74HC00, 74HCT00 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC00 / 74HCT00 provide the 2-input NAND function.

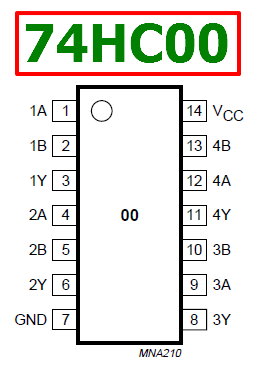

Pinouts:

74hc00-datasheet-pinout



74HC00D datasheet



Features and benefits :

1. Input levels :

(1) For 74HC00: CMOS level
(2) For 74HCT00: TTL level

2. ESD protection :

(1) HBM JESD22-A114F exceeds 2000 V
(2) MM JESD22-A115-A exceeds 200 V

3. Multiple package options

(1) Specified from -40 °C to +85 °C and from -40°C to +125°C



74HC00 Datasheet PDF Download

74HC00D pdf



Other data sheets are available within the file: 74HC00BQ, 74HC00D, 74HC00DB, 74HC00N, 74HC00PW
