74LS381 Datasheet – ARITHMETIC LOGIC UNITS/FUNCTION GENERATOR

Part Number : 74LS381

Function : ARITHMETIC LOGIC UNITS/FUNCTION GENERATORS

Manufacturers : Texas Instruments

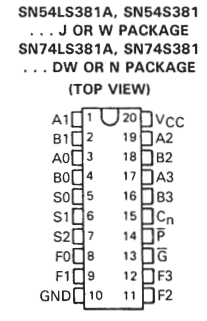

Pinouts :

74LS381 datasheet

Description :

The ‘LS381A, ‘S381 and ‘LS382A are low-power Schottky and Schottky TTL arithmetic logic units (ALUs)/function generators that perform eight binary arithmetic/logic operations on two 4-bit words as shown in the function table.

The exclusive-OR, AND, or OR function of the two Boolean variables is provided without the use of external circuitry. Also, the outputs can be cleared (low) or preset (high) as desired.

Other data sheets within the file :

54LS381, 54LS381A, 54LS382, 54LS382A, 54S381
