7MBR75U4B120 – Power Integrated Module

Part Number : 7MBR75U4B120

Function : Power Integrated Module

Manufactures : Fuji Electric

Images :

1 page

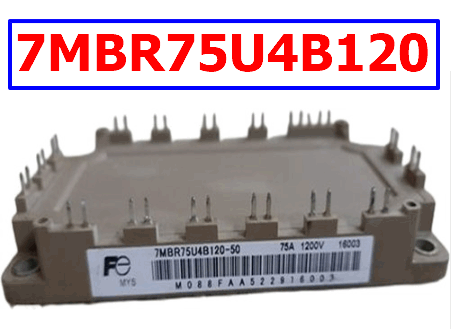

7MBR75U4B120 image

2 page
pinout

Description :

SPECIFICATION Device Name : Power Integrated Module Type Name : 7MBR75U4B120 Spec. No. : MS6M 0855 Feb. 02 ’05 S.Miyashita Feb. 02 ’05 M.W atanabe Y.Seki K.Yamada MS6M0855 1 15 H04-004-07b Revised Records Date Classification Ind. Feb.-02 -’05 Enactment Content Applied date Drawn Checked Checked Approved Issued date M.W atanabe K.Yamada Y.Seki MS6M0855 2 15 H04-004-06b 1. Outline Drawing ( Unit : mm ) 7MBR75U4B120 LABEL shows theoretical dimension. ( ) shows reference dimension. 2. Equivalent circuit [ Converter ] 1(R) 2(S) 3(T) 21(P) [ Brake ] 22(P1) 7(B) 20 (Gu) 19(Eu) 23(N) 14(Gb) 24(N1) 13(Gx) [ Inverter ] 18 (Gv) 17(Ev) 4(U) 12(Gy) 16 (Gw) 15(Ew) 5(V) 11(Gz) MS6M0855 [ Thermistor ] 89 6(W) 10(En) 3 15 H04-004-03a 3.Absolute Maximum Ratings ( at Tc= 25°C unless otherwise specified ) It em s Symbols Conditions Max i m u m Ratings Units Collector-Emitter voltage VCES 1200 V Gate-Emitter voltage VGES ±20 V Ic Continuous Tc=25°C Tc=80°C 75 50 Inverter Collector current Icp 1ms Tc=25°C Tc=80°C 150 100 A -Ic 75 -Ic pulse 1ms 150 Collector Power Dissipation Pc 1 device 275 W Collector-Emitter voltage VCES 1200 V Gate-Emitter voltage VGES ±20 V Brake Collector current Ic Continuous Tc=25°C Tc=80°C Icp 1ms Tc=25°C Tc=80°C 35 25 70 50 A Collector Power Dissipation Pc 1 device 160 W Repetitive peak reverse Voltage (Diode) VRRM 1200 V Repetitive peak reverse Voltage VRRM 1600 V Converter Average Output Current Io 50Hz/60Hz sine wave 75 A Surge Current (Non-Repetitive) IFSM Tj=150°C, 10ms 520 A I2t (Non-Repetitive) Junction temperature Storage temperature I2t Tj Tstg half sine wave 1352 150 -40 ~ +125 A2s °C Isolation between terminal and copper base (*1) voltage between thermistor and others (*2) Viso AC : 1min. 2500 VAC Screw Torque Mounting (*3) – 3.5 N m (*1) All terminals should be connected together when isolation test will be done. (*2) Two thermistor terminals should be connected together, each other terminals should be connected together and shorted to base plate when isolation test will be done. (*3) Recommendable Value : 2.5~3.5 Nm (M5) MS6M0855 4 15 H04-004-03a 4. Electrical characteristics ( at Tj= 25°C unless otherwise specified) Items Symbols Conditions Inverter Zero gate voltage Collector current Gate-Emitter leakage current Gate-Emitter threshold voltage Collector-Emitter saturation voltage Input capacitance Turn-on time Turn-off time Forward on voltage Reverse recovery time Zero gate voltage Collector current Gate-Emitter leakage current Collector-Emitter saturation voltage Turn-on time Turn-off time Reverse current Forward on voltage Reverse current Resistance B value ICES IGES VGE(th) VCE(sat) (terminal) VCE(sat) (chip) Cies ton tr tr (i) toff tf VF (terminal) VF (chip) trr ICES IGES VCE(sat) (terminal) VCE(sat) (chip) ton tr toff tf IRRM VFM IRRM R B VGE = 0V VCE = 1200V VCE = 0V VG […]

3 page

7MBR75U4B120 Datasheet
