AM2GW-NZ Datasheet – DC-DC Converter

This post explains for the semiconductor AM2GW-NZ.

The Part Number is AM2GW-NZ.

The function of this semiconductor is DC-DC Converter.

Manufacturers : AIMTEC

Preview images :

1 page

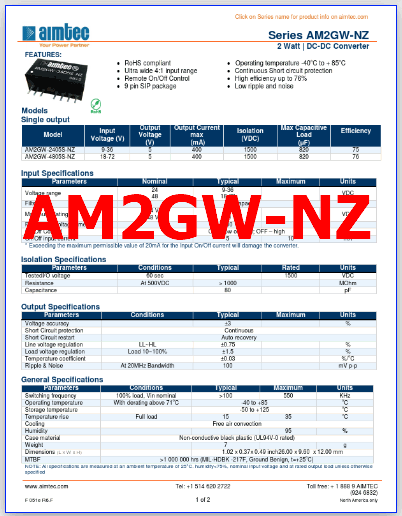

AM2GW-NZ image

Description :

FEATURES: • RoHS compliant • Ultra wide 4:1 input range • Remote On/Off Control • 9 pin SIP package Click on Series name for product info on aimtec.com Series AM2GW-NZ 2 Watt | DC-DC Converter • Operating temperature -40oC to + 85oC • Continuous Short circuit protection • High efficiency up to 76% • Low ripple and noise Models Single output Model AM2GW -2405S-NZ AM2GW -4805S-NZ Input Voltage (V) 9-36 18-72 Output Voltage (V) 5 5 Output Current max (mA) 400 400 Isolation (VDC) 1500 1500 Max Capacitive Load (μF) 820 820 Efficiency 75 76 Input Specifications Parameters Nominal Typical Maximum Voltage range Filter 24 9-36 48 18-72 Capacitor Maximum Rating 24 Vin 48 Vin 40 80 Peak Input Voltage time On/Off Control 100 ON – low or open; OFF – high On/Off input current 5 10 * Exceeding the maximum permissible value of 20mA for the Input On/Off current will damage the converter. Isolation Specifications Parameters TestedI/O voltage Resistance Capac […]

2 page

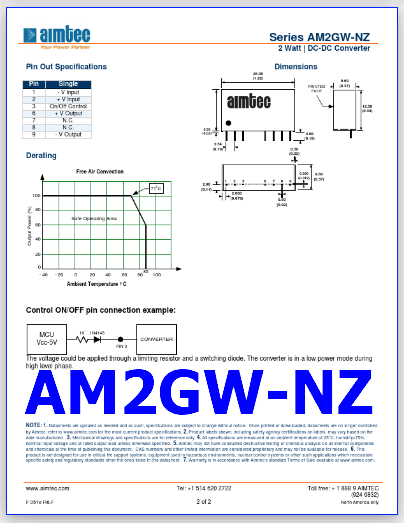

pinout

AM2GW-NZ Datasheet
