ATA2069 – Flasher

Part Number : ATA2069

Function : Flasher

Manufactures : ATMEL Corporation

Images :

1 page
ATA2069 image

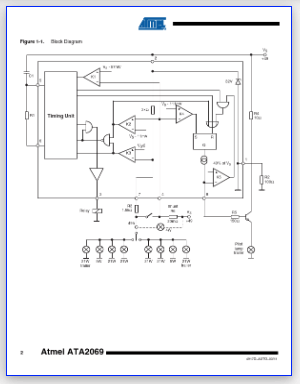

2 page
pinout

Description :

Features • Lamp Outage Indication for Car and Trailer • Temperature and Supply Voltage Compensated Flashing Frequency • Relay Driver Output with High Current Carrying Capacity and Low Saturation Voltage • Minimum Lamp Load for Flasher Operation > 10W 1. Description The bipolar integrated Atmel® circuit ATA2069 is designed for the use in relay-operated automotive flasher modules and makes it possible to detect the outage of flasher bulbs on the vehicle itself and also on a trailer. Vehicles with a trailer hook are equipped with additional pilot lamps in the dashboard. Atmel ATA2069 is off (i.e., the relay is deactivated) as long as the flasher switch (at contact +49a) is open. As soon as this switch is closed, the IC starts reliably with the bright phase. There are two thresholds integrated: one threshold is defined to be 21 + 10W and is designed for the lamp outage detection of 1 of 2 lamps. If the current is below this threshold, the IC switches to frequency doubling, just like the standard flashers (e.g. Atmel U2043B). The other threshold is defined to be 42 + 10W and is designed for the outage detection of 1 of 3 lamps; if this happens, the additional trailer pilot lamp is switched off, but there is no frequency doubling. 50 ms after the start of the bright phase, the comparator measures the voltage drop at the shunt and latches this value for the rest of the bright phase. The output of this pilot lamp (pin 8) is short-circuit protected against GND. In case of a short circuit the external transistor is switched off after 52ms for the rest of the current flasher cycle, but it is enabled again for the next cycle. Flasher with Trailer Control Atmel ATA2069 4917D–AUTO–03/11 Figure 1-1. Block Diagram C1 5 VS – 57mV K1 2 VS +49 32V R1 Timing Unit 6 3 Relay 3kΩ K2 VS – 11mV VS/2 K3 7 R3 1.5kΩ 49a VS – 111mV K4 R4 10Ω SR Q 40% of VS K5 1 4 Shunt R6 20mΩ 4W VS +49 8 R5 150Ω R2 100Ω 21W 5W 21W 21W trailer 21W 21W 5W 21W trailer Pilot lamp trailer 2 Atmel ATA2069 4917D–AUTO–03/11 2. Pin Configuration Figure 2-1. Pinning GND VS REL LD 1 2 3 4 8 OPL 7 SI 6 OSCR 5 OSCC Table 2-1. Pin 1 2 3 4 5 6 7 8 Pin Description Symbol GND VS REL LD OSCC OSCR SI OPL Function IC ground Supply Voltage Relay driver Lamp failure detection Cap. oscillator Res. oscillator Start input (49a) Output pilot lamp Atmel ATA2069 4917D–AUTO–03/11 3 3. Absolute Maximum Ratings Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Parameters Pin Symbol Value Unit Supply voltage Junction temperature Ambient temperature range Storage temperature range Thermal resistance junction ambien […]

3 page

ATA2069 Datasheet
