CLAA215FA01 – Display Module

Part Number : CLAA215FA01

Function : Display Module

Manufactures : CHUNGHWA PICTURE TUBES

Images :

1 page
CLAA215FA01 image

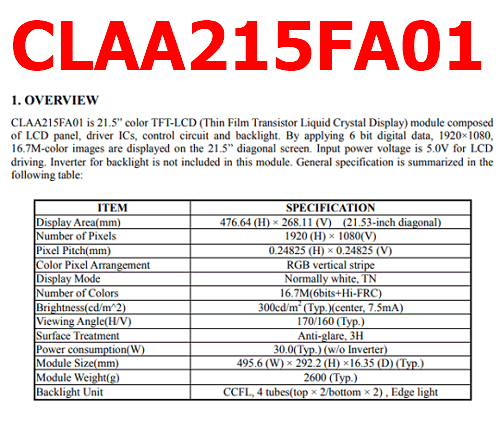

2 page
pinout

Description :

www.DataSheet.co.kr Chunghwa Picture Tubes, Ltd. Technical Specification To : GATHER Date : 2008/12/30 CLAA 215FA01 ACCEPTED BY: CPT TFT-LCD APPROVED BY CHECKED BY PREPARED BY Joe Chou Tristan Wang Product Planning Management General Division Prepared by: Design General Division CHUNGHWA PICTUER TUBES, LTD. No. 1, Huaying Rd., Sanho Tsun, Lungtan Shiang, Taoyuan, Taiwan, 325, R.O.C. TEL: +886-3-4805678 FAX: +886-3-4800589 Doc. No: CLAA215FA01-GATHER-SPEC Issue Date: 2008/12/30 Datasheet pdf – http://www.DataSheet4U.net/ www.DataSheet.co.kr CHUNGHWA PICTUER TUBES, LTD. TECHNICAL SPECIFICATION Doc. No: Version: Issue Date : A 2008/12/30 Title:CLAA215FA01 Technical Specification Table of Content NO 1 2 3 4 5 6 7 8 9 10 11 12 Table of Content OVERVIEW ABSOLUTE MAXIMUM RATINGS ELECTRICAL CHARACTERISTICS INTERFACE PIN CONNECTION INTERFACE TIMING BLOCK DIAGRAM MECHANICAL SPECIFICATION OPTICAL CHARACTERISTICS RELIABILITY TEST CONDITIONS DESIGNATION OF LOT MARK PACKING SPECIFICATION HANDLING PRECAUTIONS FOR TFT-LCD MODULE Note P.4 P.5 P.6 P.12 P.14 P.17 P.18 P.20 P.23 P.25 P.27 P.29 ISO Datasheet No: T-3010004-008-F Datasheet Version.: 01 CHUNGHWA PICTUER TUBES, LTD. Page: 2/31 Datasheet pdf – http://www.DataSheet4U.net/ www.DataSheet.co.kr CHUNGHWA PICTUER TUBES, LTD. TECHNICAL SPECIFICATION Doc. No: Version: Issue Date : A 2008/12/30 Title:CLAA215FA01 1. OVERVIEW Technical Specification CLAA215FA01 is 21.5” color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, driver ICs, control circuit and backlight. By applying 6 bit digital data, 1920×1080, 16.7M-color images are displayed on the 21.5” diagonal screen. Input power voltage is 5.0V for LCD driving. Inverter for backlight is not included in this module. General specification is summarized in the following table: ITEM Display Area(mm) Number of Pixels Pixel Pitch(mm) Color Pixel Arrangement Display Mode Number of Colors Brightness(cd/m^2) Viewing Angle(H/V) Surface Treatment Power consumption(W) Module Size(mm) Module Weight(g) Backlight Unit SPECIFICATION 476.64 (H) × 268.11 (V) (21.53-inch diagonal) 1920 (H) × 1080(V) 0.24825 (H) × 0.24825 (V) RGB vertical stripe Normally white, TN 16.7M(6bits+Hi-FRC) 300cd/m2 (Typ.)(center, 7.5mA) 170/160 (Typ.) Anti-glare, 3H 30.0(Typ.) (w/o Inverter) 495.6 (W) × 292.2 (H) ×16.35 (D) (Typ.) 2600 (Typ.) CCFL, 4 tubes(top × 2/bottom × 2) , Edge light ISO Datasheet No: T-3010004-008-F Datasheet Version.: 01 CHUNGHWA PICTUER TUBES, LTD. Page: 3/31 Datasheet pdf – http://www.DataSheet4U.net/ www.DataSheet.co.kr CHUNGHWA PICTUER TUBES, LTD. TECHNICAL SPECIFICATION Doc. No: Version: Issue Date : A 2008/12/30 Title:CLAA215FA01 Technical Specification 2. ABSOLUTE MAXIMUM RATINGS ITEM SYMBOL Power Supply Voltage for LCD VCC Lamp Voltage Lamp Current Lamp Frequency static electricity Operation Temperature Storage Temperature Delayed Discharge Time [Note] MIN. 0 780 […]

3 page

CLAA215FA01 Datasheet
