HM185WX1-400 Datasheet – 18.5 inch TFT LCD (Spec)

This post explains for the TFT LCD Module HM185WX1-400.

The Part Number is HM185WX1-400.

The function of this semiconductor is TFT LCD.

Manufacturers : EFEI BOE OPTOELECTRONICS TECHNOLOGY

Preview images :

HM185WX1-400 panel datasheet

Description :

HM185WX1-400 is a color active matrix TFT LCD module using amorphous silicon TFT’s (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diagonally measured active area with diagonally measured active area with WXGA resolutions ( resolutions (1366 horizontal by horizontal by 768 vertical vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type. […]

HM185WX1-400 Panel Specification

1. Active area : 409.8(H) × 230.4(V) mm
2. Number of pixels : 1366(H) ×768(V) pixels
3. Pixel pitch : 0.3(H) ×0.3(V) mm
4. Pixel arrangement : RGB Vertical stripe
5. Display colors : 16.7M colors
6. Disp y ode lay mode : Normally White
7. Dimensional outline : 430.4(H) × 254.6(V) × 10.9(D) typ. mm
8. Weight : 1330 (typ.) g
9. Surface Treatment : Haze 25%, 3H
10. Back-light :  right edge side, 1- LED Light bar

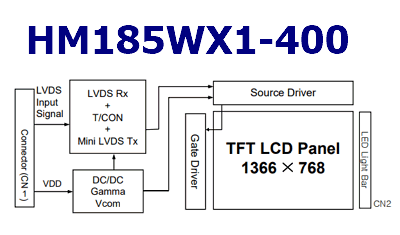

Block diagram

HM185WX1-400 lcd tft panel

Features

1. LVDS Interface with 1 pixel / clock
2. High-speed response
3. Low power consumption
4. 6-bit (Hi-FRC) color depth, display 16. 7M colors
5. Incorporated edge type back light (One Light Bar)
6. High luminance and contrast ratio, low reflection and normal viewing angle
7. DE (Data Enable) only
8. RoHS

Application

1. Desktop Type of PC & Workstation Use
2. Slim-Size Display for Stand-alone Monitor
3. Display Terminals for Control System
4. Monitors for Process Controller

HM185WX1-400 Datasheet
