KP20A600V – Phase Control Thyristors

Part Number : KP20A600V

Function : Phase Control Thyristors

Manufactures : Jeenda

Images :

1 page

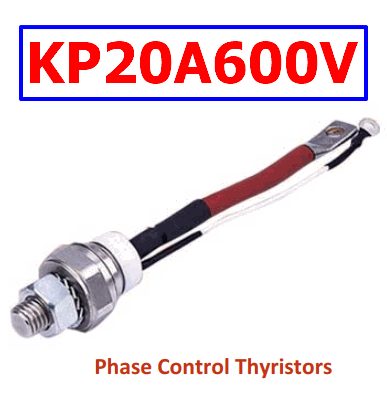

 KP20A600V image

2 page
pinout

Description :

www.jeenda.com Solid State Relays,Seminconductor Devices Phase Control Thyristors Specification: IF(AV)=5 500A VDRM/VRRM=100 5000V Hermetic metal case with ceramic insulator Hermetic glass metal seal Conform to partial national standard JB/T8949.2 1999 In accordance with IEC international electrical committee standard Typicla applications: DC motor controls Controlled DC power supplies AC switch and thermal control Synchronous motor excitation Specifications and availability subject to change. Dimensions are shown for reference purposes only. Jeenda Controls Co.,Ltd. Info@Jeenda.com 1 www.jeenda.com Solid State Relays,Seminconductor Devices Technical parameter: Model KP5A KP10A KP20A600V KP30A KP50A KP100A KP200A KP300A KP500A IT A 5 10 20 30 50 100 200 300 500 IFRSM A 8 16 32 48 80 160 320 480 800 VTM V 2.2 2.2 2.2 2.2 2.4 2.4 2.6 2.6 2.6 IDRM mA 8 8 8 10 10 10 10 30 30 IGT mA 5 45 5 45 5 45 5 50 5 150 5 200 5 200 5 200 5 200 VGT V 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 IH mA 5 45 5 45 5 45 5 50 5 150 5 200 5 200 5 200 5 200 dv/dt V/us ш 500 ш 500 ш 500 ш 800 ш 800 ш 800 ш 800 ш 800 ш 800 di/dt A/us ш 100 ш 100 ш 100 ш 100 ш 100 ш 100 RJC Ԩ/w 3 2.5 1 0.5 0.14 0.11 0.11 0.08 0.04 Weight G 12 27 29 112 142 207 327 472 927 Outline (fig.) B1 B2 B3/D1 D2 D3 D4 D5 D6 D7 Outline B1 B2 B3 D1 D2 D3 D4 D5 D6 D7 Dimension(mm) d 6 8 10 10 12 12 16 20 20 30 D 16 22 22 27 32 34 34 45 45 57 L 31 41 41 190 177 179 180 220 240 350 h 9 12 12 13 13 13 16 20 20 30 1 3 4 4 5 6.5 6.5 8 10 12 15 2 2 2 2 4 4 4 4 4 4 4 Specifications and availability subject to change. Dimensions are shown for reference purposes only. Jeenda Controls Co.,Ltd. Info@Jeenda.com 2 […]

3 page

KP20A600V Datasheet
