LTY320AN02 – TFT LCD

Part Number : LTY320AN02

Function : TFT LCD

Manufactures : Samsung

Images :

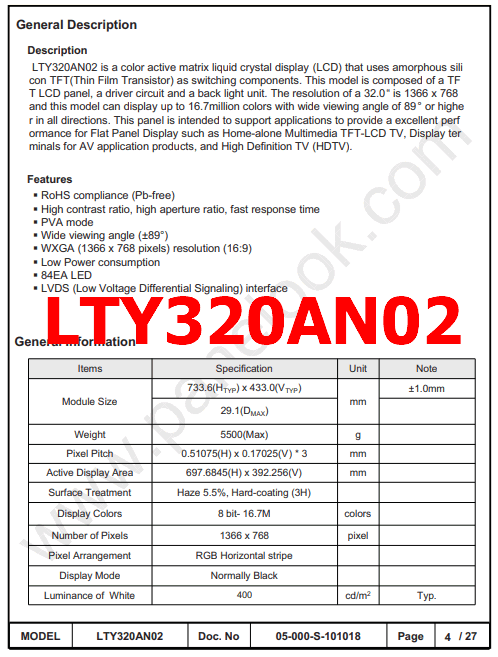

1 page
LTY320AN02 image

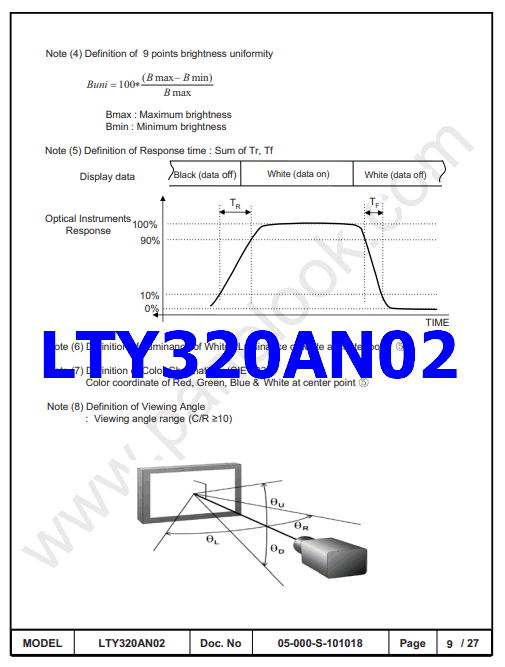

2 page
pinout

Description :

Global LCD Panel Exchange Center www.panelook.com Product Information Customer : DATE : 18 Oct. 2010 SAMSUNG TFT-LCD MODEL : LTY320AN02 The information Described in this Specification is Preliminary and can be charged wit hout prior notice NOTE : LCD Sales & Marketing Team Samsung Display Co., Ltd MODEL LTY320AN02 Doc. No 05-000-S-101018 Page 1 / 27 One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com Contents Revision History ——————————————————————————————– (3) General Description ————————————————————————————— (4) General Information ————————————————————————————— (4) 1. Absolute Maximum Ratings ————————————————————————– (5) 2. Optical Characteristics ——————————————————————————— (7) 3. Electrical Characteristics ——————————————————————————-(10) 3.1 TFT LCD Module 3.2 Back Light Unit 4. Block Diagram ——————————————————————————————- (12) 5. Input Terminal Pin Assignment ——————————————————————— (13) 5.1 Input Signal & Power of Control Board 5.2 LS Bar Input Pin Configuration 5.3 LVDS Interface 5.4 Input Signals, Basic Display Colors and Gray Scale of Each Color 6. Interface Timing —————————————————————————————- (18) 6.1 Timing Parameters (DE only mode) 6.2 Timing Diagrams of interface Signal (DE only mode) 6.3 Power ON/OFF Sequence 7. Outline Dimension ————————————————————————————– (21) 8. Packing ————————————————————————————————– (22) 9. Marking & Others ————————————————————————————— (24) 10. General Precaution ———————————————————————————- (25) 10.1 Handling 10.2 Storage 10.3 Operation 10.4 Operation Condition Guide 10.5 Others MODEL LTY320AN02 Doc. No 05-000-S-101018 Page 2 / 27 One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com – Revision History Date Oct. 18, 2010 Rev. No 000 Page – Summary First Issued MODEL LTY320AN02 Doc. No 05-000-S-101018 Page 3 / 27 One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com General Description Description LTY320AN02 is a color active matrix [.]

3 page

LTY320AN02 Datasheet
