MDF11N65B – N-Channel MOSFET

Part Number : MDF11N65B

Function : N-Channel MOSFET

Manufactures : MagnaChip

Images :

1 page
MDF11N65B image

2 page
pinout

Description :

MDF11N65B N-channel MOSFET 650V MDF11N65B N-Channel MOSFET 650V, 12A, 0.65Ω General Description These N-channel MOSFET are produced using advanced MagnaChip’s MOSFET Technology, which provides low onstate resistance, high switching performance and excellent quality. These devices are suitable device for SMPS, high Speed switching and general purpose applications. Features VDS = 650V ID = 12A RDS(ON) ≤ 0.65Ω @ VGS = 10V @ VGS = 10V Applications Power Supply PFC High Current, High Speed Switching D TO-220F MDF Series G Absolute Maximum Ratings (Ta = 25oC) Drain-Source Voltage Gate-Source Voltage Characteristics Continuous Drain Current Pulsed Drain Current(1) Power Dissipation Repetitive Avalanche Energy(1) Peak Diode Recovery dv/dt(3) Single Pulse Avalanche Energy(4) Junction and Storage Temperature Range – Id limited by maximum junction temperature TC=25oC TC=100oC TC=25oC Derate above 25 oC Thermal Characteristics Characteristics Thermal Resistance, Junction-to-Ambient(1) Thermal Resistance, Junction-to-Case(1) Aug 2011 Version 1.1 1 Symbol VDSS VGSS ID IDM PD EAR dv/dt EAS TJ, Tstg Symbol RθJA RθJC S Rating 650 ±30 12- 7.7- 48- 49.6 0.4 18.1 4.5 750 -55~150 Unit V V A A A W W/oC mJ V/ns mJ oC Rating 62.5 2.52 Unit oC/W MagnaChip Semiconductor Ltd. MDF11N65B N-channel MOSFET 650V Ordering Information Part Number MDF11N65BTH Temp. Range -55~150oC Package TO-220F Packing Tube RoHS Status Halogen Free Electrical Characteristics (Ta =25oC) Characteristics Static Characteristics Drain-Source Breakdown Voltage Gate Threshold Voltage Drain Cut-Off Current Gate Leakage Current Drain-Source ON Resistance Forward Transconductance Dynamic Characteristics Total Gate Charge Gate-Source Charge Gate-Drain Charge Input Capacitance Reverse Transfer Capacitance Output Capacitance Turn-On Delay Time Rise Time Turn-Off Delay Time Fall Time Drain-Source Body Diode Characteristics Maximum Continuous Drain to Source Diode Forward Current Source-Drain Diode Forward Voltage Body Diode Reverse Recovery Time Body Diode Reverse Recovery Charge Symbol BVDSS VGS(th) IDSS IGSS RDS(ON) gfs Qg Qgs Qgd Ciss Crss Coss td(on) tr td(off) tf IS VSD trr Qrr Test Condition ID = 250µA, VGS = 0V VDS = VGS, ID = 250µA VDS = 650V, VGS = 0V VGS = ±30V, VDS = 0V VGS = 10V, ID = 6A VDS = 30V, ID = 6A VDS = 520V, ID = 12.0A, VGS = 10V(3) VDS = 25V, VGS = 0V, f = 1.0MHz VGS = 10V, VDS = 325V, ID = 12.0A, RG = 25Ω(3) IS = 12.0A, VGS = 0V IF = 12.0A, dl/dt = 100A/µs(3) Min 650 2.0 – – – – Note : 1. Pulse width is based on RθJC & RθJA and the maximum allowed junction temperature of 150°C. 2. Pulse test: pulse width ≤300us, duty cycle≤2%, pulse width limited by junction temperature TJ(MAX)=150°C. 3. ISD ≤12.0A, di/dt≤200A/us, VDD≤BVdss, Rg =25Ω, Starting TJ=25°C 4. L=9.62mH, IAS=12.0A, VDD=50V, Rg =25Ω, Starting TJ=25°C, Typ 0.55 8.7 31 9.2 12.6 1650 7.7 180 27 52 132 48 12 355 3.6 Max Unit V 4.0 1 µA 100 nA 0.65 Ω -S […]

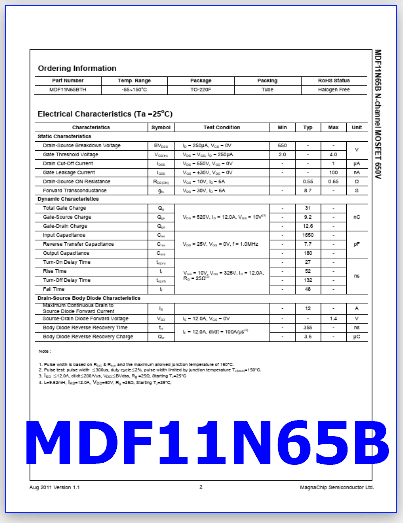

3 page

MDF11N65B Datasheet
