MIP2K20MS Datasheet – Silicon MOS FET type integrated circuit

This post explains for the semiconductor MIP2K20MS.

The Part Number is MIP2K20MS.

The function of this semiconductor is Silicon MOS FET type integrated circuit.

Manufacturers : Panasonic

Preview images :

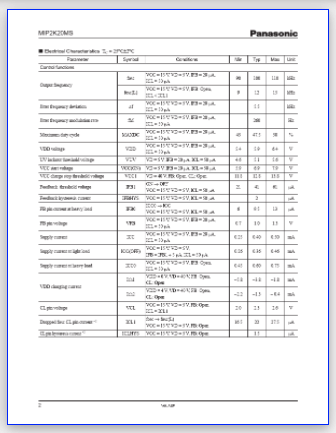

1 page
MIP2K20MS image

Description :

MIP2K20MS Silicon MOS FET type integrated circuit  Features  Built-in jitter function  Built-in charge protection circuit Built-in overheating, loadshorting and overvoltage protection circuits  Package  Code DIP7-A1  Pin Name 1. VDD 2. FB 3. CL 4. VCC  Applications  Chargers (for DSC, etc.)  AC adapter 5. DRAIN 6.  7. SOURCE 8. SOURCE  Absolute Maximum Ratings Ta = 25°C±3°C Parameter DRAIN voltage VCC voltage VDD voltage Feedback voltage Feedback current CL pin voltage CL pin current Output peak current * Channel temperature Storage temperature Symbol VD VCC VDD VFB IFB VCL ICL IDP Tch Tstg Rating – 0.3 to +700 – 0.3 to +45 – 0.3 to +8 – 0.3 to +8 500 – 0.3 to +8 150 0.95 150 -55 to +150 Unit V V V V mA V mA A °C °C  Marking Symbol: MIP2K2 Note) *: The guarantee within the following pulse width. Leading edge blanking delay + Current limit delay ton(BLK) + td(OCL)  Block Diagram VCC VCC UV VDD Constant current resource Regulator DRAI […]
