MTZ10A Datasheet – SILICON EPITAXIAL PLANAR ZENER DIODES

This post explains for the semiconductor MTZ10A.

The Part Number is MTZ10A.

The function of this semiconductor is SILICON EPITAXIAL PLANAR ZENER DIODES.

Manufacturers : SEMTECH ELECTRONICS

Preview images :

1 page
MTZ10A image

Description :

MTZ Series SILICON EPITAXIAL PLANAR ZENER DIODES Constant Voltage Control Applications Features • Glass sealed envelope • High reliability Max. 0.45 Min. 27.5 Max. 1.9 Black Cathode Band Black Part No. XXX Max. 2.9 Min. 27.5 Glass Case DO-34 Dimensions in mm Absolute Maximum Ratings (Ta = 25 OC) Parameter Power Dissipation Junction Temperature Storage Temperature Range Symbol Ptot Tj TS Value 500 175 – 65 to + 175 Unit mW O C C O Characteristics at Ta = 25 OC Zener Voltage 1) Type MTZ2V0 MTZ2V0A MTZ2V0B MTZ2V2 MTZ2V2A MTZ2V2B MTZ2V4 MTZ2V4A MTZ2V4B MTZ2V7 MTZ2V7A MTZ2V7B MTZ3V0 MTZ3V0A MTZ3V0B MTZ3V3 MTZ3V3A MTZ3V3B MTZ3V6 MTZ3V6A MTZ3V6B MTZ3V9 MTZ3V9A MTZ3V9B MTZ4V3 MTZ4V3A MTZ4V3B MTZ4V3C Operating Resistance ZZ (Ω) Max. 100 IZ (mA) 20 Rising Operating Resistance ZZK (Ω) Max. 1000 IZ (mA) 0.5 Reverse Current IR (µA) Max. 120 VR (V) 0.5 VZ (V) Min. 1.88 1.88 2.02 2.09 2.12 2.22 2.3 2.33 2.43 2.5 2.54 2.69 2.8 2.85 3.01 3.1 3.16 3.32 3.4 3 […]

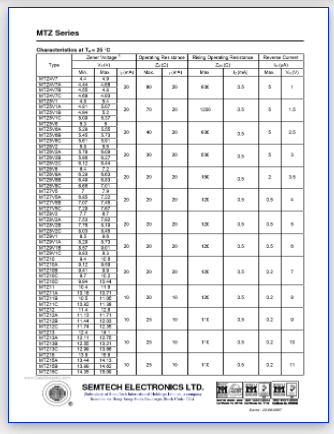

2 page
