P2NC60FP – STP2NC60FP

Part Number : P2NC60FP

Function : STP2NC60FP

Manufactures : ST Microelectronics

Images :

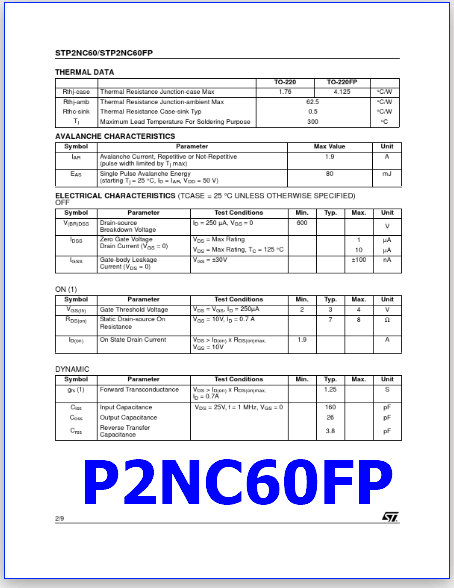

1 page
P2NC60FP image

2 page
pinout

Description :

N-CHANNEL 600V – 7Ω – 1.9A – TO-220/TO-220FP PowerMesh™II MOSFET TYPE STP2NC60 STP2NC60FP s s s s s STP2NC60 STP2NC60FP VDSS 600 V 600 V RDS(on) <8Ω <8Ω ID 1.9 A 1.9 A TYPICAL RDS(on) = 7 Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED NEW HIGH VOLTAGE BENCHMARK GATE CHARGE MINIMIZED TO-220 3 1 2 3 1 2 DESCRIPTION The PowerMESH™II is the evolution of the first generation of MESH OVERLAY™. The layout refinements introduced greatly improve the Ron*area figure of merit while keeping the device at the leading edge for what concerns swithing speed, gate charge and ruggedness. APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVER s TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (1) PTOT dv/dt VISO Tstg Tj . Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos) at TC = 25°C Drain Current (continuos) at TC = 100°C Drain Current (pulsed) Total Dissipation at TC = 25°C Derating Factor Peak Diode Recovery voltage slope Insulation Withstand Voltage (DC) Storage Temperature Max. Operating Junction Temperature –60 to 150 150 1.9 1.2 7.4 70 0.56 Value STP2NC60 600 600 ±30 1.9 (*) 1.2 (*) 7.4 (*) 30 0.24 3.5 2000 STP2NC60FP Unit V V V A A A W W/°C V/ns V °C °C (•)Pulse width limited by safe operating area (1)ISD ≤1.9A, di/dt ≤100A/µs, VDD ≤ V (BR)DSS, Tj ≤ T JMAX (*) Limited only by Maximum Temperature Allowed April 2001 1/9 STP2NC60/STP2NC60FP THERMAL DATA TO-220 Rthj-case Rthj-amb Rthc-sink Tl Thermal Resistance Junction-case Max Thermal Resistance Junction-ambient Max Thermal Resistance Case-sink Typ Maximum Lead Temperature For Soldering Purpose 1.76 62.5 0.5 300 TO-220FP 4.125 °C/W °C/W °C/W °C AVALANCHE CHARACTERISTICS Symbol IAR EAS Parameter Avalanche Current, Repetitive or Not-Repetitive (pulse width limited by Tj max) Single Pulse Avalanche Energy (starting Tj = 25 °C, ID = IAR, VDD = 50 V) Max Value 1.9 80 Unit A mJ ELECTRICAL CHARACTERISTICS (TCASE = 25 °C UNLESS OTHERWISE SPECIFIED) OFF Symbol V(BR)DSS IDSS IGSS Parameter Drain-source Breakdown Voltage Zero Gate Voltage Drain Current (VGS = 0) Gate-body Leakage Current (VDS = 0) Test Conditions ID = 250 µA, VGS = 0 VDS = Max Rating VDS = Max Rating, TC = 125 °C VGS = ±30V Min. 600 1 10 ±100 Typ. Max. Unit V µA µA nA ON (1) Symbol VGS(th) RDS(on) ID(on) Parameter Gate Threshold Voltage Static Drain-source On Resistance On State Drain Current Test Conditions VDS = VGS, ID = 250µA VGS = 10V, ID = 0.7 A VDS > ID(on) x RDS(on)max, VGS = 10V 1.9 Min. 2 Typ. 3 7 Max. 4 8 Unit V Ω A DYNAMIC Symbol gfs (1) Ciss Coss Crss Parameter Forward Transconductance Input Capacitance Output Capacitance Reverse Transfer Capacitance Test Conditions VDS > ID(on) x RDS(on) […]

3 page

P2NC60FP Datasheet
