PPN13KA11C PDF Datasheet – Minebea DC Motor

Part Number : PPN13KA11C

Function : Minebea DC Motor

Manufactures : NMB-MAT

Images :

1 page

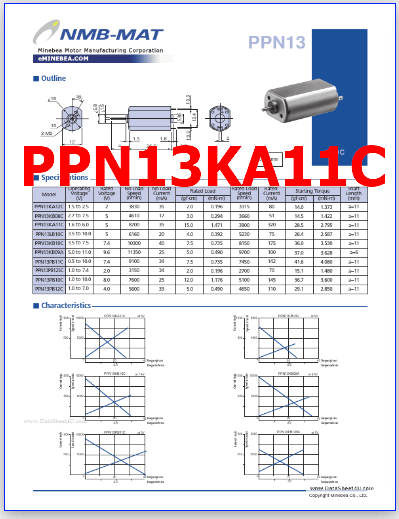

PPN13KA11C image

Description :

This is DC Motor.

PPN13 Outline t 0.3 10 2-M2 12 1.5 1.8 26.5 12.4 2 a 3.5 DC UNIT: mm Specifications Model Operating Voltage (V) Rated Voltage (V) 2 5 5 5 7.4 9.6 7.4 2.0 8.0 4.0 No Load Speed (r/min) 3830 4610 8700 6160 10300 11350 9100 3150 7600 5600 No Load Current (mA) 35 17 35 20 40 25 34 34 25 33 Rated Load (gf·cm) 2.0 3.0 15.0 4.0 7.5 5.0 7.5 2.0 12.0 5.0 (mN·m) 0.196 0.294 1.471 0.392 0.735 0.490 0.735 0.196 1.176 0.490 Rated Load Speed (r/min) 3315 3660 3900 5230 8150 9700 7450 2700 5100 4650 Rated Current (mA) 80 51 320 75 175 100 142 70 145 110 Starting Torque (gf·cm) 14.0 14.5 28.5 26.4 36.0 37.0 41.6 15.1 36.7 29.1 (mN·m) 1.373 1.422 2.795 2.587 3.530 3.628 4.080 1.480 3.600 2.850 Shaft Length (mm) a=11 a=11 a=11 a=11 a=11 a=6 a=11 a=11 a=11 a=11 PPN13KA12C 1.5 to 2.5 PPN13KB08C 2.7 to 7.5 PPN13KA11C 1.6 to 6.0 PPN13LB10C 3.5 to 10.0 PPN13KB10C 3.5 to 7.5 PPN13KB09A 5.0 to 11.0 PPN13PB11C 0.5 to 10.0 PPN13PB125C 1.0 to 7.4 PPN13PB10C 1.0 to 10.0 PPN13PB12C 1.0 to 7.0 Characteristics Current (mA) Speed (r/min) Current (mA) 1000 10000 at 5V Speed (r/min) PPN13KA11C 1000 8000 PPN13LB10C at 5V 500 5000 500 4000 0 20 2.0 40 Torque(gf·cm) Torque(mN·m) Current (mA) at 7.4V Speed (r/min) 0 20 2.0 40 Torque(gf·cm) Torque(mN·m) at 9.6V Current (mA) 1200 Speed (r/min) 12000 PPN13KB10C 1200 12000 PPN13KB09A 600 6000 600 6000 Current (mA) Speed (r/min) 1000 10000 0 20 2.0 40 Torque(gf·cm) Torque(mN·m) Current (mA) Speed (r/min) 0 20 2.0 40 Torque(gf·cm) Torque(mN·m) at 5V PPN13PB11C at 5V 500 5000 PPN13PB125C 500 5000 250 2500 0 20 2.0 40 Torque(gf·cm) Torque(mN·m) 0 10 1.0 20 Torque(gf·cm) Torque(mN·m) Copyright Minebea Co., Ltd. […]



PPN13KA11C Datasheet
