RD2004JN – Low VF – High-Speed Switching Diode

Part Number : RD2004JN

Function : Low VF – High-Speed Switching Diode

Manufactures : Sanyo

Images :

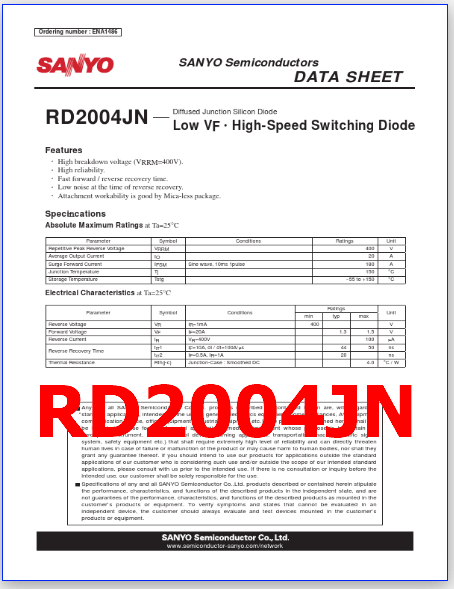

1 page
RD2004JN image

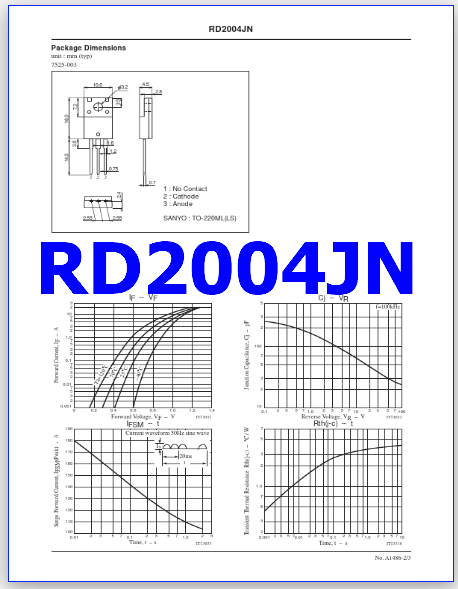

2 page
pinout

Description :

Ordering number : ENA1486 RD2004JN SANYO Semiconductors DATA SHEET RD2004JN Features • • • • • Diffused Junction Silicon Diode Low VF • High-Speed Switching Diode High breakdown voltage (VRRM=400V). High reliability. Fast forward / reverse recovery time. Low noise at the time of reverse recovery. Attachment workability is good by Mica-less package. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Repetitive Peak Reverse Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM Conditions Ratings 400 20 Sine wave, 10ms 1pulse 180 150 –55 to +150 Unit V A A °C °C IO IFSM Tj Tstg Electrical Characteristics at Ta=25°C Parameter Reverse Voltage Forward Voltage Reverse Current Reverse Recovery Time Thermal Resistance Symbol VR VF IR trr1 trr2 Rth(j-c) IR=1mA IF=20A VR=400V IF=10A, di / dt=100A/μs IF=0.5A, IR=1A Junction-Case : Smoothed DC 44 20 4.0 Conditions Ratings min 400 1.3 1.5 100 50 typ max Unit V V μA ns ns °C / W Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to “standard application”, intended for the use as general electronics equipment (home appliances, AV equipment, communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not be intended for use for any “special application” (medical equipment whose purpose is to sustain life, aerospace instrument, nuclear control device, burning appliances, transportation machine, traffic signal system, safety equipment etc.) that shall require extremely high level of reliability and can directly threaten human lives in case of failure or malfunction of the product or may cause harm to human bodies, nor shall they grant any guarantee thereof. If you should intend to use our products for applications outside the standard applications of our customer who is considering such use and/or outside the scope of our intended standard applications, please consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our customer shall be solely responsible for the use. Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’ s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’ s products or equipment. www.semiconductor-sanyo.com/network 52709SA MS IM TC-00001979 No. A1486-1/3 Free Datasheet RD2004JN Package Dimensions unit : mm (typ) 7525-003 10.0 3.5 4.5 2.8 3.2 16.0 3.6 7.2 1.6 1.2 14.0 0.75 1 2 3 0.7 2.4 1 : No Contact 2 : Cathode 3 : Anode SAN […]

3 page

RD2004JN Datasheet
