SARS02 – Auxiliary Switch Diode

Part Number : SARS02

Function : Auxiliary Switch Diode

Manufactures : Sanken

Images :

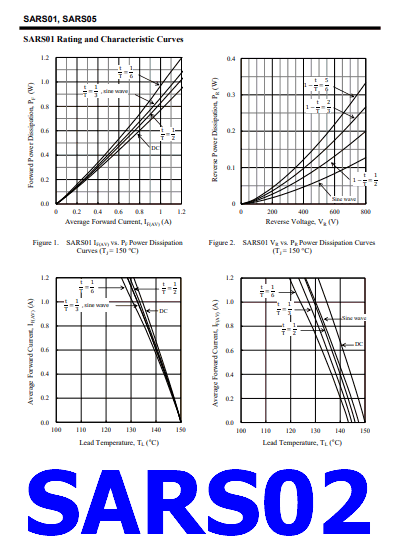

1 page
SARS02 image

2 page
pinout

Description :

Auxiliary Switch Diode for Snubber SARS01/02/05/10 Data Sheet Description SARS is the auxiliary switch diode for snubber circuit, used in the primary side clamp snubber circuit of switched-mode power supplies with fly back topology. Since the ringing voltage at turning off the power MOSFET is more reduced by the clamp snubber circuit using SARS, the cross regulation of multi-outputs is improved. Since some energy of the ringing is transferred to the secondary side, the power supply efficiency can be improved. Package SARS01 (Axial φ 2.7 / φ 0.60) SARS02 (Axial φ 4 / φ 0.78) Features ● Improving cross regulation ● Reducing noise ● Improving efficiency Application Switched-mode power supply (SMPS) with flyback topology such as for the followings: ● White goods ● Adaptor ● Industrial equipment Typical Application Clamp snubber CS RS1 RS2 SARS SARS05 (SMA 4.5×2.6) SARS10 (TO220F-2L) Not to Scale Lineup ● VRM=800V RS2 External component Products SARS01 IF (AVG) VF (max.) 1.2 A 0.92 V Power supply output power, PO- ~50W SARS02 1.5 A 0.92 V ~100W SARS05 1 A 1.05 V ~50W Built-in 22Ω SARS10 0.3 A 13 V ~300W – PO is the reference value at selection. The temperature of SARS should be measured based on actual operation in the application. Cont. AC/DC converter IC SARS01/02/05/10 – DSJ Rev.1.0 SANKEN ELECTRIC CO.,LTD. Jun.29, 2015 http://www.sanken-ele.co.jp/en/ © SANKEN ELECTRIC CO.,LTD. 2015 1 SARS01/02/05/10 CONTENTS Description — 1 CONTENTS 2 1. Absolute Maximum Ratings – 3 2. Electrical Characteristics 3 3. Performance Curves — 4 3.1 SARS01 4 3.1.1 Typical Characteristics — 4 3.1.2 Power Dissipation Curves (Tj = 150°C) — 4 3.1.3 Derating Curves (Tj = 150°C) — 5 3.2 SARS02 5 3.2.1 Typical Characteristics — 5 3.2.2 Power Dissipation Curves (Tj = 150°C) — 6 3.2.3 Derating Curves (Tj = 150°C) — 6 3.3 SARS05 7 3.3.1 Typical Characteristic […]

3 page

SARS02 Datasheet
