SN8P2612 – 8-Bit Micro-Controller

Part Number : SN8P2612

Function : 8-Bit Micro-Controller

Manufactures : SONiX Technology Company

Images :

1 page
SN8P2612 image

2 page

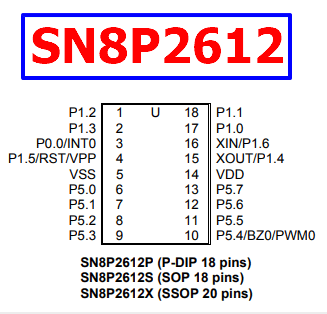

pinout

Description :

SN8P2610 Series 8-Bit Micro-Controller SN8P2610 Series USER’S MANUAL Preliminary V 1.3 SN8P2613 SN8P2612 SN8P2611 SONiX 8-Bit Micro-Controller SONIX reserves the right to make change without further notice to any products herein to improve reliability, function or design. SONIX does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights nor the rights of others. SONIX products are not designed, intended, or authorized for us as components in systems intended, for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SONIX product could create a situation where personal injury or death may occur. Should Buyer purchase or use SONIX products for any such unintended or unauthorized application. Buyer shall indemnify and hold SONIX and its officers, employees, subsidiaries, affiliates and distributors harmless against all claims, cost, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use even if such claim alleges that SONIX was negligent regarding the design or manufacture of the part. SONiX TECHNOLOGY CO., LTD Page 1 Version 1.3 SN8P2610 Series 8-Bit Micro-Controller AMENDMENT HISTORY Version VER 0.1 VER 0.2 Date Jan. 2005 Jun. 2005 Aug. 2005 Description First issue 1. Add SN8P2611 item. 2. Add SN8P2611 programming pin mapping for Writer connection. 3. Add P-DIP 14 pins and SOP 14 pins package outline diagram. 1. Remove Writer V2.5 information. 2. ADD P92 Note. Use M2IDE V1.06 (or after version) to simulation. 3. ADD P92 Note. Use 16M Hz Crystal to simulation internal 16M RC. 4. ADD P92 Note. Use 16M Hz Crystal to programming with EZ-Writer. 5. Modify P89 Internal Hihg RC. 1. ADD Brown-Out reset circuit. 2. Working Voltage vs. Frequency graphs. 1. Modify Topr value. 2. ADD IHRC curve. 1. Modify T0 RTC interrupt service routine and T0IRQ operation description. 2. Modify Brown-Out Reset description 3. Remove power consumption(Pc) 4. Remove Noise Filter Enable Working Voltage 5. Modify PIN DESCRIPTIONS(P1 wakeup function) 6. Modify IHRC_RTC code option description 7. Remove High clock 32K mode 8. Modify M2IDE 1.07 9. Add Fcpu limitation by noise filter. 10. Modify ELECTRICAL CHARACTERISTIC. 11. Remove RTC function. 1. 1. 2. 3. Modify Programming Pin Mapping Add Marking Definition. Modify ELECTRICAL CHARACTERISTIC. Modify RST/P1.5/VPP PIN DISCRIPTION. Nov.2005 VER 1.0 Nov. 2005 2005 VER 1.1 Dec VER 1.2 VER 1.3 May 2005 Feb 2007 SONiX TECHNOLOGY CO., LTD Page 2 Version 1.3 SN8P2610 Series 8-Bit Micro-Controller Table of Content AMENDMENT HISTORY […]
