TA7237AP PDF – Audio Power Output Amplifier – Toshiba

The Part Number is TA7237AP.

The function of this semiconductor is Power Amplifier.

The package is sip 12 pin type.

Manufacturer: Toshiba


TA7237AP datasheet amplifier

Description

The TA7237AP is a specific model of an integrated circuit (IC) produced by Toshiba. It is an audio power amplifier IC designed for use in stereo applications, particularly in audio systems, car audio amplifiers, and other consumer electronic devices.

The TA7237AP is a dual-channel audio amplifier IC that can deliver high-quality audio amplification. It offers a built-in preamplifier and power amplifier stage, making it suitable for driving speakers or headphones.

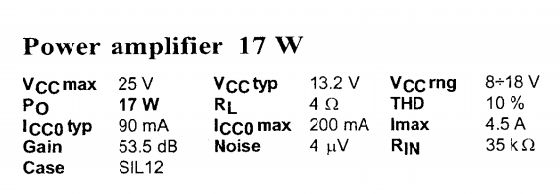

power amplifier

Pinout and Circuit

TA7237AP image



TA7237AP PDF Datasheet
