TSUM16AK – SXGA LCD Controller

Part Number : TSUM16AK

Function : SXGA LCD Controller

Manufactures : Mstar

Images :

1 page
TSUM16AK image

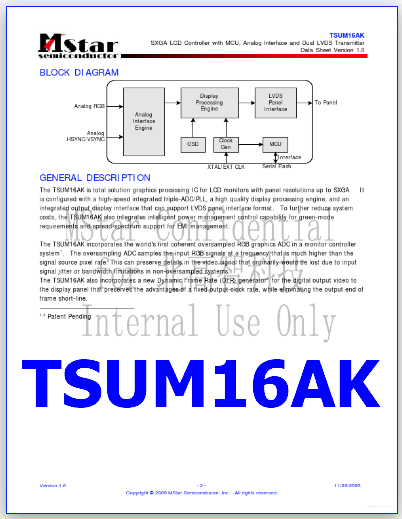

2 page
pinout

Description :

TSUM16AK SXGA LCD Controller with MCU, Analog Interface and Dual LVDS Transmitter Data Sheet Version 1.0 FEATURES n Input Ports Ÿ RGB analog input port supports up to 165 MHz (UXGA @ 60Hz) Ÿ Full SOG and composite sync support, including copy protected signals n On-screen Display Controller (OSD) Ÿ Built-in OSD generator with 291 character font programmable RAM Ÿ Internal OSD rotation degree of 90 and 270 Ÿ Supports 2/4/8 multi-color fonts Ÿ Supports 8/16/256 color palette Ÿ Supports 1K code attributes Ÿ Gradient color function Ÿ Hardware button animation function Ÿ Pattern generator for production test Ÿ Supports OSD MUX and alpha blending capability n Display Processing Engine Ÿ Patent-pending Hybrid Image Resolution Converter Ÿ Variable sharpness control Ÿ Interlaced to progressive conversion Ÿ Patent-pending Dynamic Frame-Rate generator (DFR) – short line storage frame extension technique eliminates short lines in output frames Ÿ Media Window Enhancement (MWE)Note Ÿ Peaking & coring functions for sharpness enhancement and noise reduction Ÿ Brightness and contrast control Ÿ Programmable 10-bit gamma correction Ÿ sRGB support n n Output Display Interface Ÿ Supports 6/8-bit LVDS panel interface Ÿ Supports up to SXGA display resolution with up to 135 MHz dot clock Ÿ Spread spectrum output frequency for EMI suppression Ÿ PWM backlight intensity control DPMS Support Ÿ Full Green Mode DPMS support Ÿ Low standby power (< 16mA) n Auto-Detection / Auto-Tune Support Ÿ Auto input signal format (SOG, Composite, Separated HSYNC and VSYNC) Ÿ Input mode detection support analyzes input video signal (H/V polarity, H/V frequency, interlace/field detect) – extensive status registers support robust detection of all VESA & IBM modes Ÿ Auto-tuning function including support for phase selection, image position, offset & gain and jitter detection Ÿ Smart screen-fitting n n Embedded MCU Ÿ 8032 CPU Ÿ ISP Support Ÿ UART Support Ÿ 19 GPIO External Connection/Component Ÿ Built-in DDC circuit Ÿ DDC2B/2Bi/2B+/CI support Ÿ Supports External Serial Flash Note: The optional MWE function is available with TSUM16AWK. Version 1.0 -1Copyright © 2005 MStar Semiconductor, Inc. All rights reserved. 11/29/2005 Free Datasheet http:// TSUM16AK SXGA LCD Controller with MCU, Analog Interface and Dual LVDS Transmitter Data Sheet Version 1.0 BLOCK DIAGRAM Display Processing Engine LVDS Panel Interface Analog RGB Analog Interface Engine To Panel Analog HSYNC/VSYNC OSD Clock Gen XTAL/EXT CLK MCU Interface Serial Flash GENERAL DESCRIPTION The TSUM16AK is total solution graphics processing IC for LCD monitors with panel resolutions up to SXGA. It is configured with a high-speed integrated triple-ADC/PLL, a high quality display processing engine, and an integrated output display interface that can support LVDS panel interface format. To further reduce system costs, the TSUM16AK also integrates intelligent power [...]

3 page

TSUM16AK Datasheet
