UTC78L05L – LINEAR INTEGRATED CIRCUIT

Part Number : UTC78L05L

Function : LINEAR INTEGRATED CIRCUIT

Manufactures : UTC

Images :

1 page

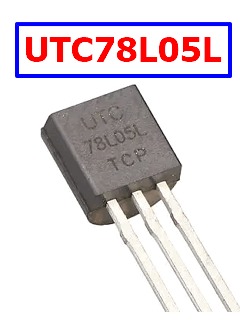

UTC78L05 image

2 page
pinout

Description :

UTC 78LXX LINEAR INTEGRATED CIRCUIT 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATOR DESCRIPTION The UTC 78LXX family is monolithic fixed voltage regulator integrated circuit. They are suitable for applications that required supply current up to 100mA. 1 SOP-8 TO-92 1 FEATURES *Output current up to 100mA *Fixed output voltage of 5V, 6V, 8V, 9V, 12V, 15V, 18V and 24V available *Thermal overload shutdown protection *Short circuit current limiting SOT-89 SOP-8 1:Output 2,3,6,7:GND 8:Input 4,5:N.C. TO-92 1:Output 2:GND; 3:Input SOT-89 1:Output 2:GND; 3:Input TEST CIRCUIT INPUT 3 R13 T10 R17 T8 R9 T9 Z2 T12 T14 R19 R18 R12 R11 R14 T11 T5 T6 T13 OUTPUT R10 1 R8 R15 T4 Z1 T15 R5 R4 R6 T7 R16 R1 R2 C1 T3 R7 T1 T2 R3 GND 2 UTC UNISONIC TECHNOLOGIES CO., LTD. 1 QW-R101-001,D UTC 78LXX PARAMETER Input voltage (for Vo=5~9V) (for Vo=12~24V) Output Current Power Dissipation SOP-8 LINEAR INTEGRATED CIRCUIT SYMBOL VI VI Io PD ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified) MIN. MAX. 30 35 100 300 625 350 UNIT V V mA mW TO-92 SOT-89 Operating Junction Temperature Range Storage Temperature Range TOPR TSTG -20 -55 +150 +150 °C °C UTC78L05 ELECTRICAL CHARACTERISTICS (VI=10V, Io=40mA, 0°C
