ACM1601B-NEGS-T Datasheet – 16 Char x 1 line, LCD Module

Part Number: ACM1601B-NEGS-T

Function: 16 characters x 1 lines, 0.0-6.5V; 5x7dots with cursor

Manufacturer: AZ Displays

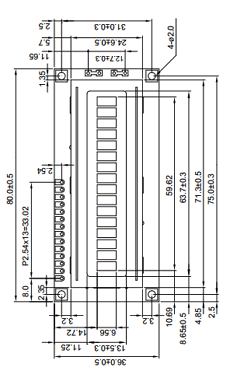

Pinouts:

ACM1601B-NEGS-T datasheet

Description:

– Number of Characters 16 characters x 1 line

– Character Format 5 x 7 dots with cursor

– Controller IC KS0066

Other data sheets are available within the file:

ACM1601B, ACM1601B-FEBH-T, ACM1601B-FEBS-T,

ACM1601B-FEBW-T, ACM1601B-FEFD-T

ACM1601B-NEGS-T Datasheet PDF Download

ACM1601B-NEGS-T pdf
