ACM2402B Datasheet PDF – 24 Char x 2 Lines, LCD Module

Part Number: ACM2402B

Function: 24 Characters x 2 Lines, LCD Module

Manufacturer: AZ Displays

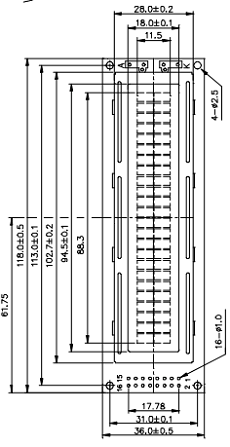

Image and Pinouts:

ACM2402B datasheet



Description

The ACM2402B is 24 characters x 2 lines, 5 x 7 dots with cursor LCD Module.

Features

1.  Overall Module Size :

(1) 118.0mm(W) x 36.0mm(H) x max 14.0mm(D) for LED Backlight version

(2) 118.0mm(W) x 36.0mm(H) x max 9.5mm(D) for reflective version

2.  Dot Size : 0.60mm(W) x 0.65mm(H)

3.  Dot Pitch : 0.65mm(W) x 0.70mm(H)

4.  Duty : 1/16

5.  Controller IC : KS0066

6.  LC Fluid Options : TN, STN

7.  Polarizer Options Reflective, Transflective, Transmissive

8.  Backlight Options : LED

9.  Temperature Range Options : Standard (0ºC ~ 50ºC), Wide (-20ºC ~ 70ºC)

Other data sheets are available within the file:

ACM2402BFEBD-T, ACM2402BFEBH-T, ACM2402BFEBS-T, ACM2402BFEBW-T
