ACM4001A Datasheet PDF

Part Number : ACM4001A

Function : 0.0-6.5V; 5x7dots with cursor; 40characters x 1lines; dot size0.60×0.65mm; dot pitch0.70×0.75mm; AZ display

Manufacturers : AZ Displays

Pinouts :

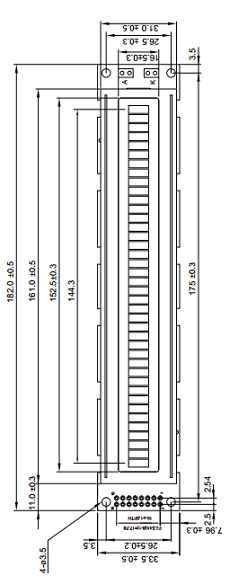

ACM4001A datasheet

Description :

* Number of Characters : 40 characters x 1 line

* Character Format : 5 x 7 dots with cursor

* Overall Module Size (W x H x D) :
182.0x 33.5x max 14.5for LED backlight version
182.0x 33.5x max 9.5for reflective or EL backlight version

* Dot Size (W x H)  :0.60x 0.65

* Dot Pitch (W x H) : 0.70x 0.75

* Duty : 1/11

* Controller IC : KS0066

* LC Fluid Options : STN


* Polarizer Options: Reflective, Transflective, Transmissive

* Backlight Options : EL, LED

* Temperature Range Options : Standard, Wide temp

Datasheet PDF Download

ACM4001A pdf

Other data sheets within the file :
ACM4001A,ACM4001A-FEBD-T,ACM4001A-FEBH-T,ACM4001A-FEBW-T,ACM4001A-FEFH-T
