AD5380 Datasheet – 40-Channel, 4-Bit, denseDAC

Part Number : AD5380

Function : 40-Channel, 3 V/5 V, Single-Supply, 14-Bit, denseDAC

Package : 100-lead LQFP Type

Manufacturers : Analog Devices

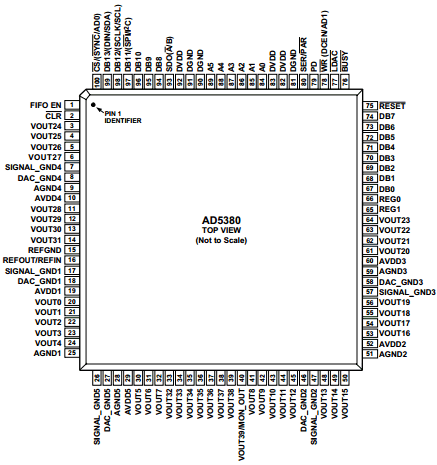

Pinouts :

AD5380 datasheet

Description :

The AD5380 is a complete, single-supply, 40-channel, 14-bit denseDAC® available in a 100-lead LQFP package. All 40 channels have an on-chip output amplifier with rail-to-rail operation. The AD5380 includes a programmable internal 1.25 V/2.5 V, 1 0 ppm/°C reference, an on-chip channel monitor function that multiplexes the analog outputs to a common MON_OUT pin for external monitoring, and an output amplifier boost mode that allows optimization of the amplifier slew rate. The device contains a double-buffered parallel interface that features a 20 ns WR pulse width, an SPI-, QSPI-, -MICROWIRE, -DSP compatible serial interface with interface speeds in excess of 30 MHz, and an I2 C-compatible interface that supports a 400 kHz data transfer rate.

Features
Guaranteed monotonic
INL error: ±4 LSB max
On-chip 1.25 V/2.5 V, 10 ppm/°C reference
Temperature range: –40°C to +85°C
Rail-to-rail output amplifier
Power down
Package type: 100-lead LQFP (14 mm × 14 mm)
User interfaces
Parallel
Serial (SPI®-, QSPI™-, MICROWIRE™-, DSP-compatibl
featuring data readback)
I2C®-compatible
Robust 6.5 kV HBM and 2 kV FICDM ESD rating

INTEGRATED FUNCTIONS
1. Channel monitor
2. Simultaneous output update via LDAC
3. Clear function to user programmable code
4. Amplifier boost mode to optimize slew rate
5. User programmable offset and gain adjust
6. Toggle mode enables square wave generation
7. Thermal monitor

Applications
1 .Variable optical attenuators (VOA)
2. Level setting (ATE)
3. Optical micro-electro-mechanical systems (MEMS)
4. Control systems
5. Instrumentation

AVDD = 4.5 V to 5.5 V; DVDD = 2.7 V to 5.5 V, AGND = DGND = 0 V; External REFIN = 2.5 V; all specifications TMIN to TMAX,
unless otherwise noted.

Other data sheets within the file : AD5380BSTZ-3, AD5380BSTZ-5
