AD7607 Datasheet – 8-Ch DAS, Simultaneous Sampling ADC

Part Number : AD7607

Function : 8-Channel DAS with 14-Bit, Simultaneous Sampling ADC

Package : 64-lead LQFP type

Manufacturers : Analog Devices

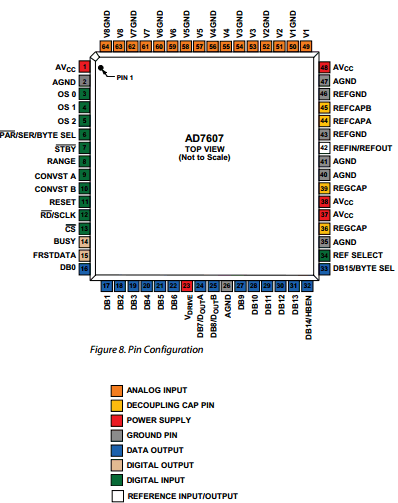

Pinouts :

AD7607 datasheet

Description :

The AD7607 is a 14-bit, simultaneous sampling, analog-to-digital data acquisition system (DAS). The part contains analog input clamp protection; a second-order antialiasing filter; a track and-hold amplifier; a 14-bit charge redistribution, successive approximation analog-to-digital converter (ADC); a flexible digital filter; a 2.5 V reference and reference buffer; and high speed serial and parallel interfaces.

Features

1. 8 simultaneously sampled inputs
2. True bipolar analog input ranges: ±10 V, ±5 V
3. Single 5 V analog supply and 2.3 V to 5.25 V VDRIVE
4. Fully integrated data acquisition solution
5. Analog input clamp protection
6. Input buffer with 1 MΩ analog input impedance
7. Second-order antialiasing analog filter
8. On-chip accurate reference and reference buffer
9. 14-bit ADC with 200 kSPS on all channels
10. Flexible parallel/serial interface
11. SPI/QSPI™/MICROWIRE™/DSP compatible
12. Pin-compatible solutions from 14 bits to 18 bits
13. Performance
14. 7 kV ESD rating on analog input channels
15. Fast throughput rate: 200 kSPS for all channels
16. 85.5 dB SNR at 50 kSPS
17. INL ±0.25 LSB, DNL ±0.25 LSB
18. Low power: 100 mW at 200 kSPS
19. Standby mode: 25 mW typical

Applications

1. Power-line monitoring and protection systems
2. Multiphase motor control
3. Instrumentation and control systems
4. Multiaxis positioning systems
5. Data acquisition systems (DAS)



Other data sheets within the file : AD7607BSTZ, AD7607BSTZ-RL, EVAL-AD7607EDZ
