AD7665 Datasheet – 16-bit, 570kSPS, CMOS ADC

Part Number : AD7665

Function : 16-bit, 570kSPS, CMOS ADC

Package : 48-Lead Quad Flatpack (LQFP) Type

Manufacturers : Analog Devices

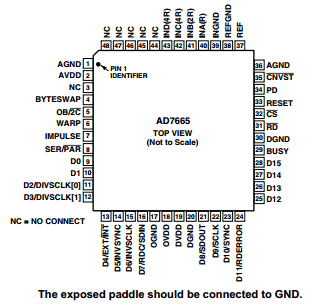

Pinouts :

AD7665 datasheet

Description :

The AD7665 is a 16-bit, 570 kSPS, charge redistribution SAR,analog-to-digital converter that operates from a single 5 V power supply. It contains a high speed 16-bit sampling ADC, a resistor input scaler that allows various input ranges, an internal conversion clock, error correction circuits, and both serial and parallel system interface ports. The AD7665 is hardware factory-calibrated and is comprehen sively tested to ensure such ac parameters as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity. It features a very high sampling rate mode (Warp), a fast mode (Normal) for asynchronous conversion rate applications, and for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput.

Features

1. INL : 2.5 LSB Max (0.0038% of Full Scale)
2. 16-Bit Resolution with No Missing Codes
3. S/(N+D): 90 dB Typ @ 180 kHz
4. THD: –100 dB Typ @ 180 kHz
5. Both AC and DC Specifications
6. No Pipeline Delay
7. Parallel (8/16 Bits) and Serial 5 V/3 V Interface
8. Single 5 V Supply Operation

Applications

1. Data Acquisition
2. Communication
3. Instrumentation
4. Spectrum Analysis
5. Medical Instruments
6. Process Control

Other data sheets within the file :
AD7665ACPZ, AD7665ACPZRL, AD7665AST, AD7665ASTRL
