AD8106 Datasheet PDF

Part Number : AD8106

Function : 260 MHz, 16 × 5 Buffered Video Crosspoint Switches

Manufacturers : Analog Devices

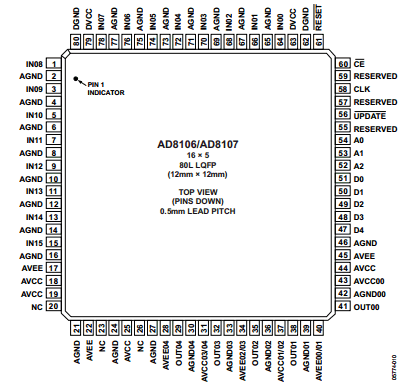

Pinouts :

AD8106 datasheet

Description :

GENERAL DESCRIPTION
The AD8106 and AD8107 are high speed, 16 × 5 video crosspoint switch matrices. They offer a −3 dB signal bandwidth greater than 260 MHz, and channel switch times of less than 25 ns with 1% settling. With −78 dB of crosstalk and −97 dB isolation (@ 5 MHz), the AD8106/AD8107 are useful in many high speed applications. The differential gain and differential phase of greater than 0.02% and 0.02° respectively, along with 0.1 dB flatness out to 60 MHz, make the AD8106/AD8107 ideal for video signal switching.

FEATURES
16 × 5 high speed, nonblocking switch arrays
AD8106: G = 1, AD8107: G = 2
Pin compatible with AD8110/AD8111, 16 × 8 switch arrays
For a 16 × 16 array, see AD8114/AD8115
For a 16 x 8 array, see AD8110/AD8111
Complete solution
Buffered inputs
Five output amplifiers
Drives 150 Ωloads
Excellent video performance
60 MHz 0.1 dB gain flatness
0.02% differential gain error (RL= 150 Ω)
0.028 differential phase error (RL= 150 Ω)
Excellent ac performance
−3 dB bandwidth > 260 MHz
500 V/μs slew rate
Low power of 50 mA
Low all-hostile crosstalk of −78 dB @ 5 MHz
Output disable allows connection of multiple device outputs
Reset pin allows disabling of all outputs
Excellent ESD rating: Exceeds 4000 V human body model
80-lead LQFP (12 mm × 12 mm)

APPLICATIONS
Routing of high speed signals including:
Composite video (NTSC, PAL, S, SECAM)
Component video (YUV, RGB)
Compressed video (MPEG, Wavelet)
3-level digital video (HDB3)

VS= ±5 V, TA= 25°C, RL= 1 kΩ, unless otherwise noted.

Datasheet PDF Download

AD8106 pdf

Other data sheets within the file :
AD8106,AD8106-EB,AD8106ASTZ,AD8107,AD8107-EB
