AD8117 Datasheet – Buffered Analog Crosspoint Switch

Part Number : AD8117

Function : 600 MHz, 32 × 32 Buffered Analog Crosspoint Switch

Package : 304-ball BGA Type (31 mm × 31 mm)

Manufacturers : Analog Devices

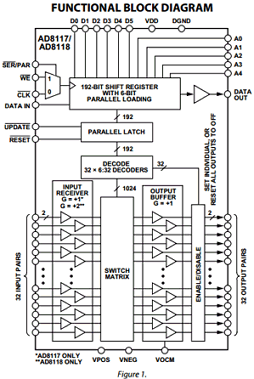

Pinouts :

AD8117 datasheet



Description :

The AD8117 / AD8118 are high speed, 32 × 32 analog crosspoint switch matrices. They offer 600 MHz bandwidth and slew rate of 1800 V/μs for high resolution computer graphics (RGB) signal switching. With less than −70 dB of crosstalk and −90 dB isolation (@ 5 MHz), the AD8117/AD8118 are useful in many high speed applications. The 0.1 dB flatness greater than 50 MHz makes the AD8117/AD8118 ideal for composite video switching.

Features

1. High channel count, 32 × 32 high speed, non-blocking
2. switch array
3. Differential or single-ended operation
4. Flexible power supplies
5. Single +5 V supply, or dual ±2.5 V supplies
6. Serial or parallel programming of switch array
7. High impedance output disable allows connection of
8. multiple devices with minimal loading on output bus
9. Excellent video performance
10. >50 MHz 0.1 dB gain flatness
11. 0.05%/0.05° differential gain/phase error (RL= 150 Ω)
12. Excellent ac performance
13. Bandwidth: 600 MHz
14 .Slew rate: 1800 V/μs
15. Settling time: 2.5 ns to 1%
16. Low power of 2.5 W
17. Low all hostile crosstalk
18. < −70 dB @ 5 MHz
19. < −43 dB @ 600 MHz
20. Reset pin allows disabling of all outputs (connected through
21. a capacitor to ground provides power-on reset capability)

Applications

1. Routing of high speed signals including
2. RGB and component video routing
3. KVM
4. Compressed video (MPEG, wavelet)
5. Data communications

VS= ±2.5 V at TA= 25°C, RL, diff= 200 Ω, VOCM= 0 V, differential I/O mode, unless otherwise noted.

Other data sheets within the file :
AD8117-EVAL, AD8117ABPZ, AD8118, AD8118-EVAL
