AD9776A Datasheet – 12-Bit,Digital-to-Analog Converter

Part Number: AD9776A

Function: Dual, 12-Bit,1 GSPS Digital-to-Analog Converter

Package: 100-lead, exposed paddle TQFP type

Manufacturer: Analog Devices

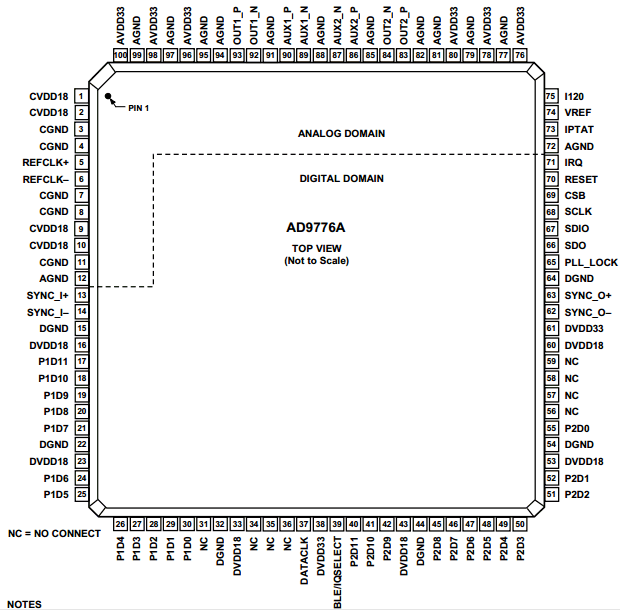

Pinouts:

AD9776A datasheet

Description

The AD9776A/AD9778A/AD9779A are dual, 12-/14-/16-bit, high dynamic range digital-to-analog converters (DACs) that provide a sample rate of 1 GSPS, permitting a multicarrier generation up to the Nyquist frequency. They include features optimized for direct conversion transmission applications, including complex digital modulation and gain and offset compensation. The DAC outputs are optimized to interface seamlessly with analog quadrature modulators such as the ADL537x FMOD series from Analog Devices, Inc. A 3-wire interface provides for programming/readback of many internal parameters. Full-scale output current can be programmed over a range of 10 mA to 30 mA. The devices are manufactured on an advanced 0.18 μm CMOS process and operate on 1.8 V and 3.3 V supplies for a total power consumption of 1.0 W. They are enclosed in a 100-lead thin quad flat package (TQFP).

Features

1. Low power: 1.0 W @ 1 GSPS, 600 mW @ 500 MSPS,
2. full operating conditions
3. Single carrier W-CDMA ACLR = 80 dBc @ 80 MHz IF
4. Analog output: adjustable 8.7 mA to 31.7 mA, RL= 25 Ω to 50 Ω
5. Novel 2×, 4×, and 8× interpolator/coarse complex modulator allows carrier placement anywhere in DAC bandwidth
6. Auxiliary DACs allow control of external VGA and offset control
7. Multiple chip synchronization interface
8. High performance, low noise PLL clock multiplier
9. Digital inverse sinc filter

Applications

1. Wireless infrastructure
2. W-CDMA, CDMA2000, TD-SCDMA, WiMax, GSM, LTE
3. Digital high or low IF synthesis
4. Internal digital upconversion capability
5. Transmit diversity
6. Wideband communications: LMDS/MMDS, point-to-point

AD9776A Datasheet PDF Download

AD9776A pdf

Other data sheets are available within the file:
AD9776A-EBZ, AD9776ABSVZ, AD9776ABSVZRL, AD9778A
