ADS7924 Datasheet PDF

Part Number : ADS7924

Function : 2.2V, 12-Bit, 4-Channel, microPOWER ANALOG-TO-DIGITAL CONVERTER WITH I2C INTERFACE

Manufacturers : Texas Instruments

Pinouts :

ADS7924 datasheet

Description :

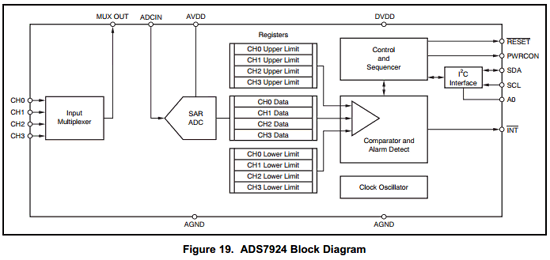

The ADS7924 is a four-channel, 12-bit, analog-to-digital converter (ADC) with an I2C interface.

With its low-power ADC core, support for low-supply operation, and a flexible measurement sequencer that essentially eliminates power consumption between conversions, the ADS7924 forms a complete monitoring system for power-critical applications such as battery-powered equipment and energy harvesting systems.

The ADS7924 features dedicated data registers and onboard programmable digital threshold comparators for each input. Alarm conditions can be programmed that generate an interrupt.

The combination of data buffering, programmable threshold comparisons, and alarm interrupts minimize the host microcontroller time needed to supervise the ADS7924.

Datasheet PDF Download

ADS7924 pdf

Other data sheets within the file :
7924,ADS7924,ADS7924IRTER,ADS7924IRTET
