APL5155 Datasheet PDF

Part Number : APL5155

Function : High Input Voltage, Low Quiescent Current, 150mA LDO Regulator

Manufacturers : Anpec Electronics

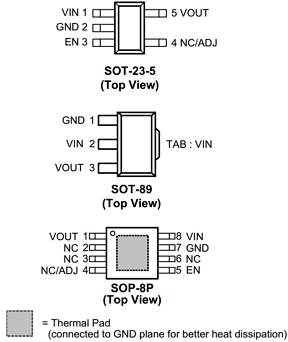

Pinouts :

APL5155 datasheet

Description :

General  Description
The APL5155 is a low ground current linear regulator,which operates with input voltage from 5.4V to 25V and delivers output current up to 150mA. Typical dropout volt
age is only 750mV at 150mA loading. This combination of the high voltage and the low ground current makes the APL5155 ideal for USB and portable devices, using 2-
cell or 3-cell Li-Ion battery inputs. The APL5155 is stable with aluminum, tantalum, and
ceramic capacitors. It requires a 1mF or greater capacitor for stability.
The APL5155 has many protection functions, including over-temperature, current-limit and short circuit current limit protections, which prevent the device from thermal
over-load and current over-load. The APL5155 regulator is available in miniature SOT-23-
5, SOT-89, and SOP-8P packages.

Features
• Wide Input Voltage Range: 5.4V to 25V
• Ultra Low Ground Current: 10mA
• High Output Accuracy: ±2.5%
• Excellent Load/Line Transient
• Low Dropout Voltage: 750mV @ 150mA
• Fixed Output Voltages for 5V/3.3V or Adjustable Voltage
• Built-In Current-Limit Protection
• Built-In Over-Temperature Protection
• Zero Shutdown Current
• Internal Soft-Start Function
• POR Scheme to Prevent VOUT Spike
• SOT-23-5, SOT-89, and SOP-8P Packages
• Lead Free and Green Devices Available
(RoHS Compliant)
