APM2054N Datasheet PDF – 20V, 5A, N-Ch, MOSFET

Part Number : APM2054N

Function : 20V, 5A, N-Ch, MOSFET

Package : SOT-223 Type

Manufacturers : Anpec Electronics

Image and Pinouts :

APM2054N datasheet



Description :

This is 20V, 5A, N-Channel Enhancement Mode MOSFET.

Features :

1. 20V/5A,
(1) RDS(ON)= 35mW (Typ.) @VGS= 10V
(2) RDS(ON)= 45mW (Typ.) @VGS= 4.5V
(3) RDS(ON)= 110mW (Typ.) @ VGS= 2.5V

2. Super High Dense Cell Design

3. Reliable and Rugged

4. Lead Free andGreenDevices Available (RoHSCompliant)

Applications :

1. Switching Regulators
2. Switching Converters

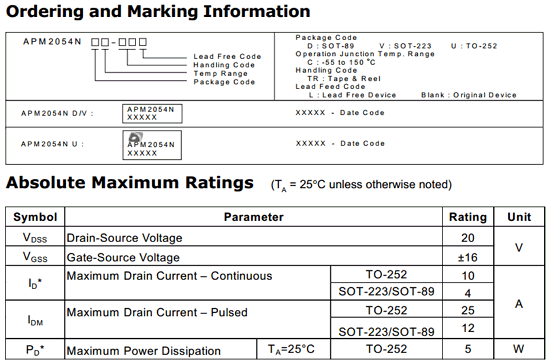

Absoulute maximum ratings :

1. Drain-Source Voltage : VDSS 20 V
2. Gate-Source Voltage : VGSS =  ±16

Other data sheets within the file : APM2054ND, APM2054ND-TR, APM2054ND-TRL, APM2054NU
