Part Number : B1390

Function : 120V, 8A, Silicon PNP Transistor

Package : TO-220FM Type

Manufacturers : Hitachi ( Renesas Electronics )

Images :

B1390 datasheet

Description :

1. Silicon PNP Triple Diffused Transistor

Absolute Maximum Ratings (Ta = 25°C)

1. Collector to base voltage : VCBO = – 120 V
2. Collector to emitter voltage : VCEO = – 120 V
3. Emitter to base voltage : VEBO = – 7 V
4. Collector current : IC = – 8 A
5. Collector peak current : IC(peak) = – 12 A
6. Collector power dissipation : PC = 2 W

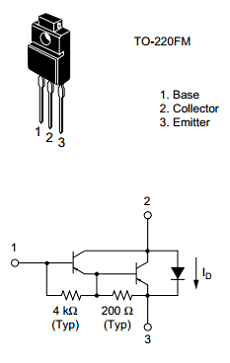

Pinout :

Applications

1. Power switching

Other data sheets within the file : 2SB1390
