BC847 Datasheet – NPN Transistor, 45V, 100mA ( PDF )

Part Number: BC847

Function: 45V, 100mA, NPN Transistor

Pakcage : SOT23 Type

Manufacturer: NXP Semiconductors.

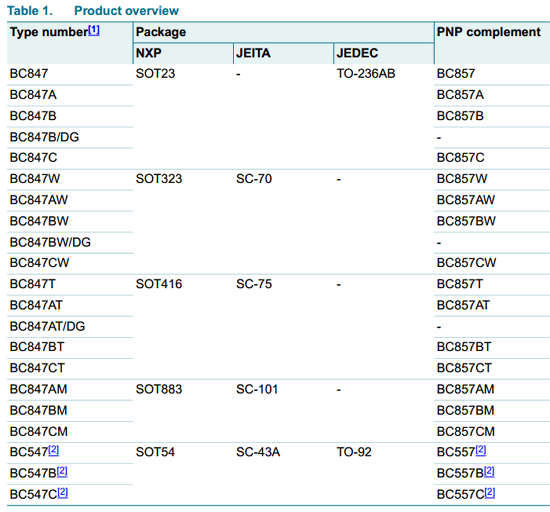

Image and Pinouts:

BC847 datasheet



Description

This is NPN Transistor. NPN general-purpose transistors in small plastic packages.

Features

1. Low current

2. Low voltage

3. Three different gain selections

components

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage: Vcbo = 50 V

2. Collector to Emitter Voltage: Vceo = 45 V

3. Emitter to Base Voltage: Vebo = 6 V

4. Collector Current: Ic = 100 mA

5. Total Power Dissipation : Ptot = 250 mW

6. Junction Temperature: Tj = 150°C

7. Storage Temperature: Tsg = -55 ~ +150°C



Applications:

1. General-purpose switching and amplification



BC847 Datasheet PDF Download


BC847 pdf

Other data sheets are available within the file: BC547, BC547A, BC547B, BC547C
