BF981 Datasheet – N-Ch Dual Gate MOSFET – Philips

Part Number : BF981

Function : SILICON N-CHANNEL DUAL GATE MOS-FET

Package : SOT-103 Type

Manufactures : Philips Semiconductors


bf981-mosfet

Description

Depletion type field-effect transistor in a plastic X-package with source and substrate interconnected, intended for v.h.f. applications, such as v.h.f. television tuners, f.m. tuners and professional communication equiment. This MOSFET tetrode is protected against excessive input voltage surges by integrated back-to-back didodes between gates and source.



Pinout

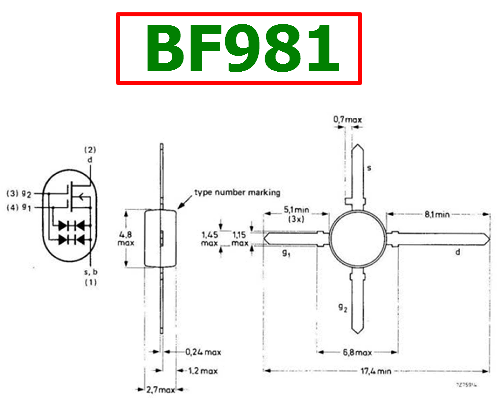

bf981-datasheet-pinout
Quick Referece Data

1. Drain-source voltage : Vds = max. 20V

2. Drain current : Id = max. 20mA

3. Total power dissipation up to Tamb = 75’C : Ptot = max. 225mW
