BTM98-8AA Datasheet – Bluetooth Audio Module ( PDF )

Part Number: BTM98-8AA

Function: Bluetooth Audio Module

Package: Module Type

Manufacturer: TTK Technologies

Images :

BTM98-8AA datasheet



Description

BTM98-8AA is the latest generation of Bluetooth Module. It provides highest levelof integration With integrated 2.4GHz radio, DSP , battery Charger ,    and antenna ready . Mono applications. BTM98-8AAm is also ready to support the latest Bluetooth 4.0 standard and  support forsecure Simplepairing.

Features

1. Plug n’ Play Bluetooth Solution for mono and Stereo Audio Solutions
2. Integrated DSP, Stereo Codec , and Battery Charger
3. Integrated Antenna
4. Bluetooth 4.0 Compliant
5. Class II Range up to 10 Meters

Applications

1. High quality wireless stereo headsets
2. Wireless mono headsets
3. Wireless speakers
4. Hands-free car kits

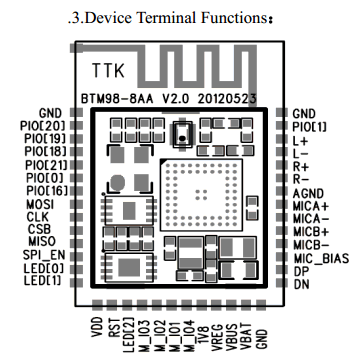

Block Diagram :

components

components

Other data sheets are available within the file: BTM988AA, BTM98-8AAm
