C2551 Transistor – 300V, 100mA, NPN, 2SC2551 Datasheet

Part Number : C2551

Function : 300V, 100mA, NPN Transistor

Package : TO-92 Type

Manufacturers : Toshiba

Image and Pinouts :

C2551 datasheet



Description :

This is 300V, 100mA, Silicon NPN Power Transistor.

Features :

•  High voltage: VCBO= 300 V, VCEO= 300 V

•  Low saturation voltage: VCE (sat)= 0.5 V (max)

•  Small collector output capacitance: Cob= 3 pF (typ.)

•  Complementary to 2SA1091.

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 300 V

2. Collector to Emitter Voltage : Vceo = 300 V

3. Emitter to Base Voltage : Vebo = 6 V

4. Collector Current : Ic = 100 mA

5. Collector Dissipation : Pc = 400 mW

6. Junction Temperature : Tj = 150°C

7. Storage Temperature : Tsg = -55 ~ +150°C

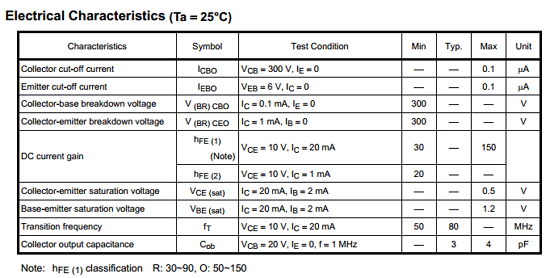

C2551 Datasheet PDF Download


C2551 pdf

Other data sheets within the file : 2SC2551
