C4217 Datasheet – 300V, NPN Transistor for Color TV – Sanyo

Part Number : C4217

Function : NPN Triple Diffused Planar Silicon Transistor

Package : TO-126ML Type

Manufacturers : SANYO -> Panasonic

Image :

C4217 Image

Description :

Color TV Chroma Output, Sound Output, B/W TV Video Output, Sound Output applications

Features

1. High breakdown voltage (VCEO≥300V).
2. Micaless package facilitating easy mounting.

Pinout

C4217 Pinout datasheet

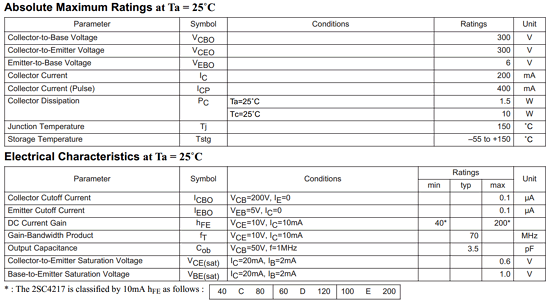

Absolute Maximum Ratings at Ta = 25˚C

1. Collector to Base Voltage : Vcbo = 300 V
2. Collector to Emitter Voltage : Vceo = 300 V
3. Emitter to Base Voltage : Vebo = 6 V
4. Collector Current : Ic = 200 mA
5. Total Dissipation : Pc =1.5 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C

C4217 Datasheet
