C5802 Datasheet – Vcbo=1500V, NPN Silicon Transistor – Fairchild

Part Number : C5802, KSC5802

Function : NPN Triple Diffused Planar Silicon Transistor ( Vcbo=1500V, Vceo=800V, Vebo=6V, Ic=10A )

Package : TO-3PF Type

Manufactures : Fairchild

Image :
C5802 transistor KSC5802

Description :

High Voltage Color Display Horizontal Deflection Output (No Damper Diode)

1. High Breakdown Voltage : BVCBO=1500V
2. High Speed Switching : tF=0.1µs (Typ.)
3. Wide S.O.A
4. For C-Monitor(69KHz)

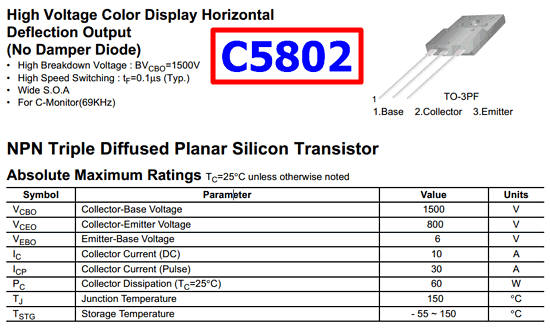

Pinout

C5802 datasheet pinout

Absolute Maximum Ratings

1. Collector-Base Voltage : VCBO = 1500 V
2. Collector-Emitter Voltage : VCEO = 800 V
3. Emitter-Base Voltage : VEBO = 6 V
4. Collector Current (DC) : IC = 10 A

C5802 Datasheet
